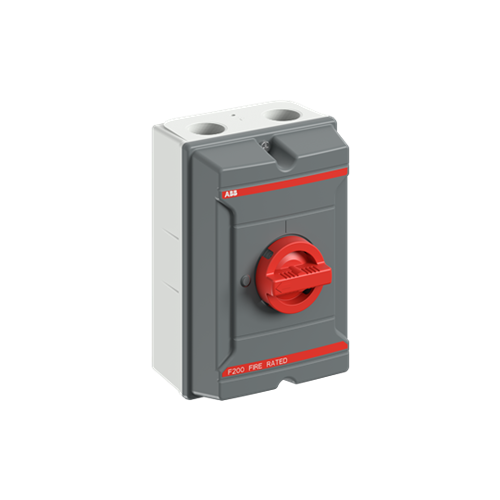

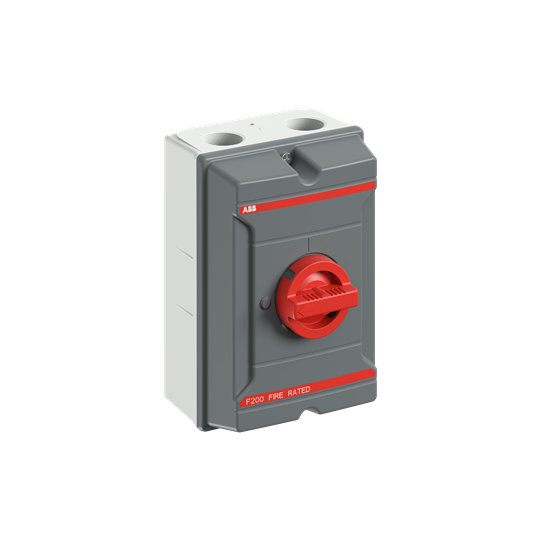

ABB OKA63S4RF2 F200 Emc Enclosed Switch 2NO+2NC IP65 63A 750V 30 kW 30 kW 30 kW Screw Terminal

Product Code: OKA63S4RF2

  • Rated current: 63 A, voltage: 750 V
  • IP65 protection with aluminium build
  • Short circuit capacity: 13 kA
  • Cable entry from top and bottom
  • Screw clamp terminal, 1.5-35 sq-mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosed switch disconnector
Brand
ABB
Series
OKA
Application
Fire-rated switching/isolation for exhaust fans in high-rise buildings, car parks and tunnels

Electrical

Rated Current
63 A (AC-23A at 380–415 V); 45 A at 500 V; 20 A at 690 V
Rated Voltage
750 V main circuit; 415 V AC23

Mechanical

Cable Entry
Top/bottom; 2xM40 / 2xM40+M16
Colour
Enclosure; RAL7012 / RAL7035 red handle
Material
Aluminium enclosure
Mounting
Panel mounted
Connection/Termination
Screw terminals / screw clamp

Dimensions & Physical Data

Depth
118 mm
Height
230 mm
Weight
2.15 kg
Width
160 mm

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1, IEC 60947-3
