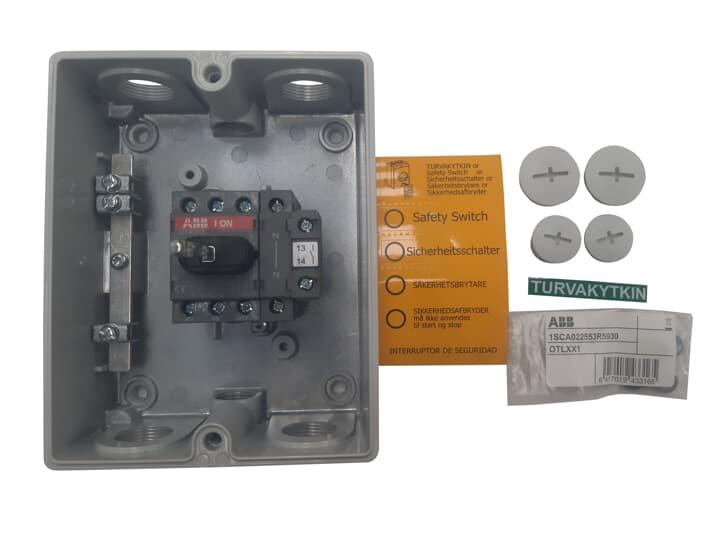

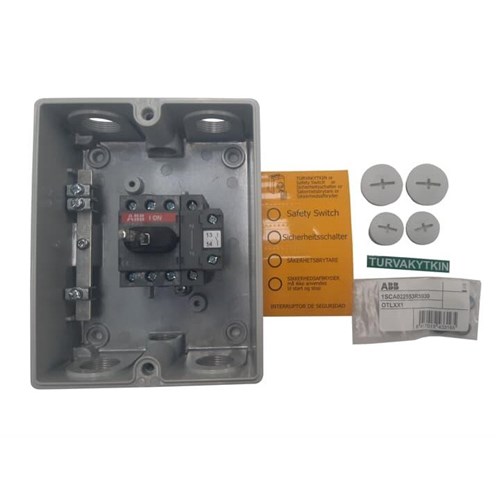

ABB OKA20S3RF2 Enclosed Switch 3 20A 750V 11 kW Screw Terminal

Product Code: OKA20S3RF2

  • Rated current of 32 A for reliable performance
  • Supports up to 750 V rated voltage
  • Compact dimensions: 130x165x103 mm
  • Screw clamp terminals for secure connections
  • Complies with IEC 60947 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosed switch disconnector
Brand
ABB
Series
OKA
Application
Fire-rated switching/isolation for exhaust fans in high-rise buildings, car parks and tunnels

Electrical

Rated Current
20 A (AC-23A at 380–500 V); 12 A at 690 V
Rated Voltage
750 V main circuit; 415 V AC23

Mechanical

Cable Entry
Top/bottom; 2xM25+M20 per side
Colour
Enclosure; RAL7012 / RAL7035 red handle
Material
Aluminium enclosure
Mounting
Panel mounted
Connection/Termination
Screw terminals / screw clamp

Dimensions & Physical Data

Depth
103 mm
Height
165 mm
Weight
1.25 kg
Width
130 mm

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1, IEC 60947-3

Documents

IPD Product Catalogue V17
