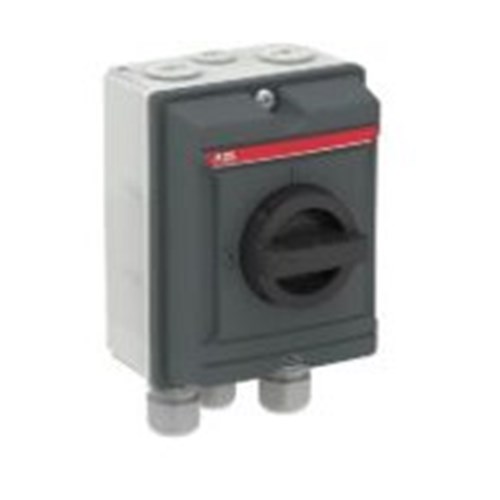

ABB OKA16S3G Switch Disconnector 3 IP65 16A 750VAC 7.5 kW Screw Terminal

Product Code: OKA16S3G

  • Enclosed design with IP65 protection
  • Rated for 16 A and 750 VAC
  • Aluminium build, panel mountable
  • Suitable for distribution board install
  • Meets IEC, RoHS, REACH standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosed switch disconnector
Brand
ABB
Series
OKA
Application
Industrial switching and isolation in harsh/EMC environments

Electrical

Rated Current
16 A (AC-23A at 380–500 V) 10 A at 690 V
Rated Voltage
750 V main circuit; 415 V AC23

Mechanical

Cable Entry
Top/bottom; 2xM25+M20 per side
Colour
Enclosure; RAL7012 / RAL7035 black handle
Material
Aluminium enclosure
Mounting
Panel mounted
Connection/Termination
Screw terminals / screw clamp

Dimensions & Physical Data

Depth
103 mm
Height
165 mm
Weight
1.25 kg
Width
130 mm

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1, IEC 60947-3

Documents

IPD Product Catalogue V17
