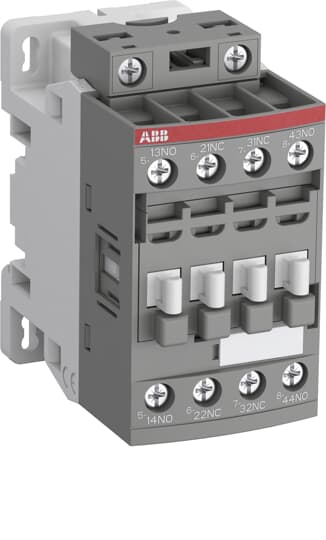

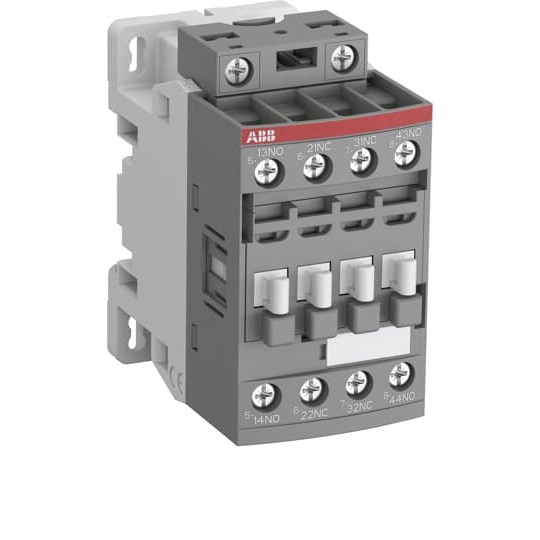

ABB NFZB22E23 Contactor Relay 100-250V 2NO

Product Code: NFZB22E23

  • Supports 100-250 VAC/VDC
  • Rated current options: 2 A, 3 A
  • IP20 protection for safety
  • Mounts on 35 x 15 mm rail
  • Complies with IEC/EN standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Contactor Relays
Brand
ABB

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Control Supply Voltage (Us)
50 Hz 100 ... 250V 60 Hz 100 ... 250V DC Operation 100 ... 250V
Rated Operational Current AC-15 (Ie)
(690V) 2A
Rated Frequency
50/60Hz
No. of Poles
2NO/2NC

Dimensions & Physical Data

Depth
77mm
Height
86mm
Weight
0.31kg
Width
45mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60335-2-40 LZGH2 A2L, UL 60947-5-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-5-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives.
