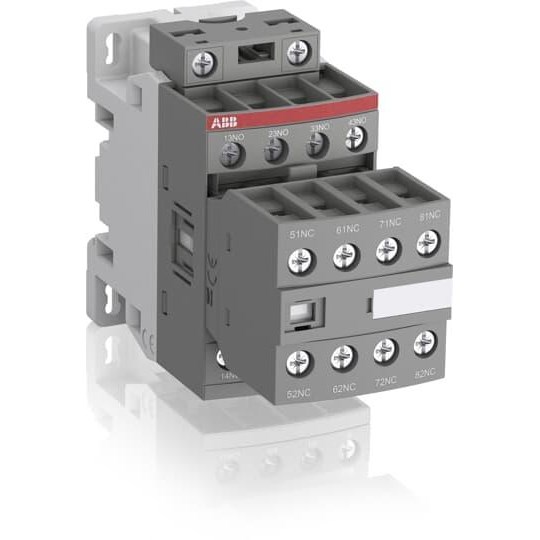

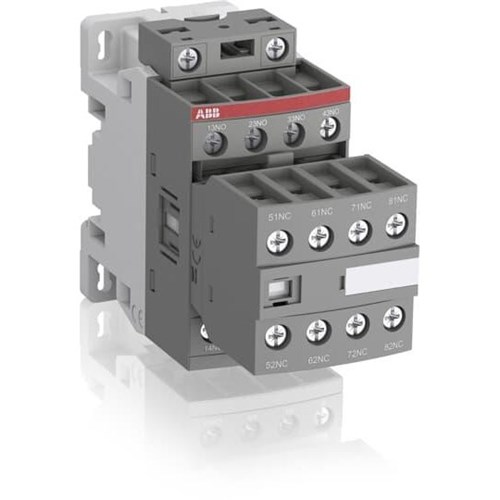

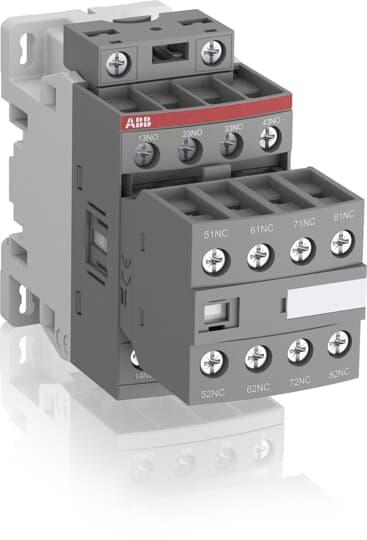

ABB NFZ62E21 Contactor Relay 20-60VDC 6NO 50/60Hz

Product Code: NFZ62E21

  • Supports 20-60 VDC with 2 A, 3 A current
  • IP20 protection with M4 screw terminals
  • Fits on 35 x 15 mm mounting rail
  • Operates from -40 to 70°C
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Block Contactor Relay
Brand
ABB

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
6
No. of Poles (Total)
8P
Rated Control Supply Voltage (Us)
50 Hz 24 ... 60 V60 Hz 24 ... 60 VDC Operation 24 ... 60 V
Rated Operational Current AC-15 (Ie)
(500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(400 / 440 V) 3 A
Rated Frequency
50 / 60 Hz

Dimensions & Physical Data

Depth
110.5 mm
Height
86 mm
Weight
0.36 kg
Width
45 mm

Environmental

Ambient Temperature
-40 ... 70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529

Documents

IPD Product Catalogue V17
