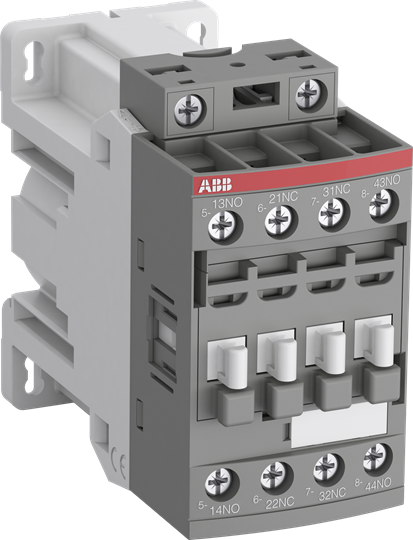

ABB NFZ31E30 Contactor Relay 24VDC 3NO

Product Code: NFZ31E30

  • Operates at 24 VDC with 2 A or 3 A current
  • IP20 protection, suitable for indoor use
  • Fits on standard 35 x 15 mm rail
  • Supports up to 16 A air thermal current
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Block Contactor Relay
Brand
ABB

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
3
No. of Poles (Total)
4P
Rated Control Supply Voltage (Us)
DC Operation 24 V
Rated Operational Current AC-15 (Ie)
(500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(400 / 440 V) 3 A
Rated Frequency
50 / 60 Hz

Dimensions & Physical Data

Depth
97 mm
Height
86 mm
Weight
0.43 kg
Width
45 mm

Environmental

Ambient Temperature
-40 ... 70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529

Documents

IPD Product Catalogue V17
