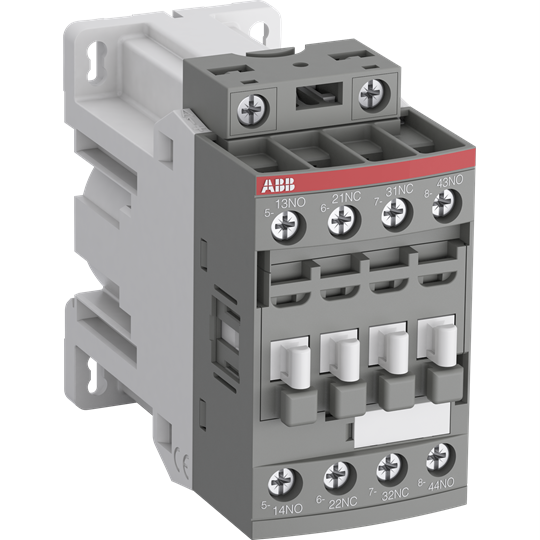

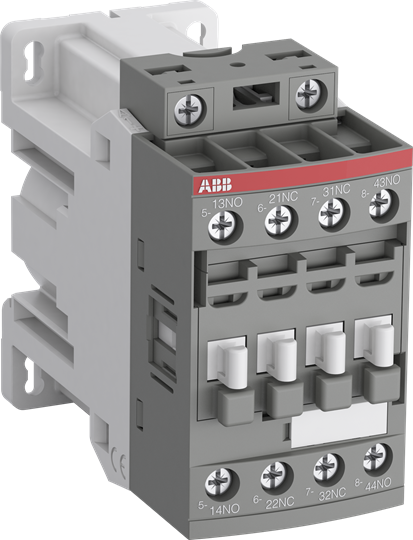

ABB NFZ22E30 Contactor Relay 24VDC 2NO

Product Code: NFZ22E30

  • Operates on 24 VDC, 2 A/3 A current
  • Compact size: 97x45x86 mm
  • IP20 protection for safe usage
  • Complies with IEC/EN & UL standards
  • Easy rail mounting with M4 screws
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Block Contactor Relay
Brand
ABB

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
No. of Poles (Total)
4P
Rated Control Supply Voltage (Us)
DC Operation 24 V
Rated Operational Current AC-15 (Ie)
(500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(400 / 440 V) 3 A
Rated Frequency
50 / 60 Hz

Dimensions & Physical Data

Depth
97 mm
Height
86 mm
Weight
0.43 kg
Width
45 mm

Environmental

Ambient Temperature
-40 ... 70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529
