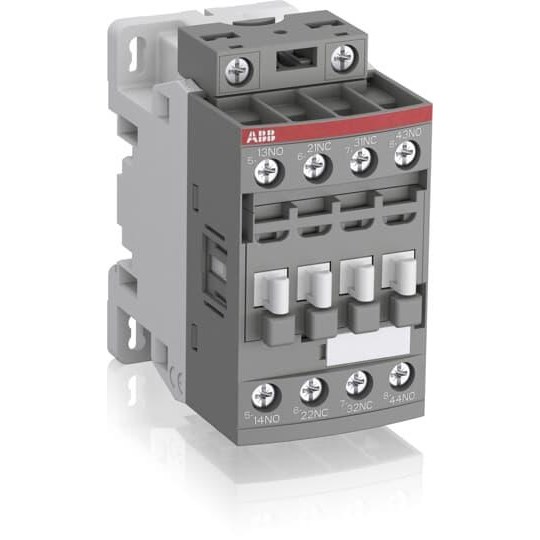

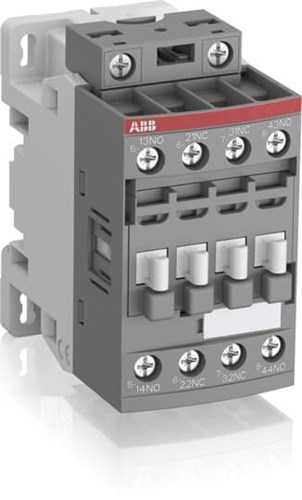

ABB NFZ22E21 Contactor Relay 20-60VDC 2NO 50/60Hz

Product Code: NFZ22E21

  • Supports 20-60 VDC and 24-60 VAC
  • Rated current options: 2 A or 3 A
  • Compact size: 77 x 45 x 86 mm
  • IP20 protection for safety
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Block Contactor Relay
Brand
ABB

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
No. of Poles (Total)
4P
Rated Control Supply Voltage (Us)
50 Hz 24 ... 60 V60 Hz 24 ... 60 VDC Operation 24 ... 60 V
Rated Operational Current AC-15 (Ie)
(500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(400 / 440 V) 3 A
Rated Frequency
50 / 60 Hz

Dimensions & Physical Data

Depth
77 mm
Height
86 mm
Weight
0.31 kg
Width
45 mm

Environmental

Ambient Temperature
-40 ... 70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529
