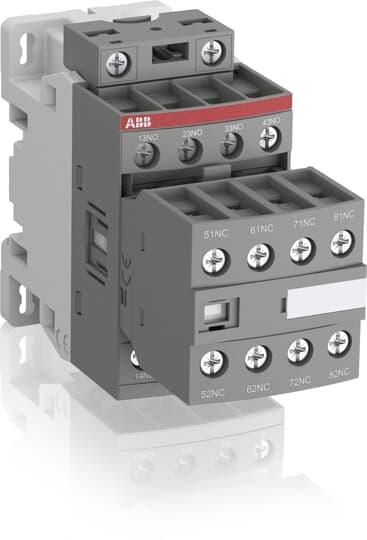

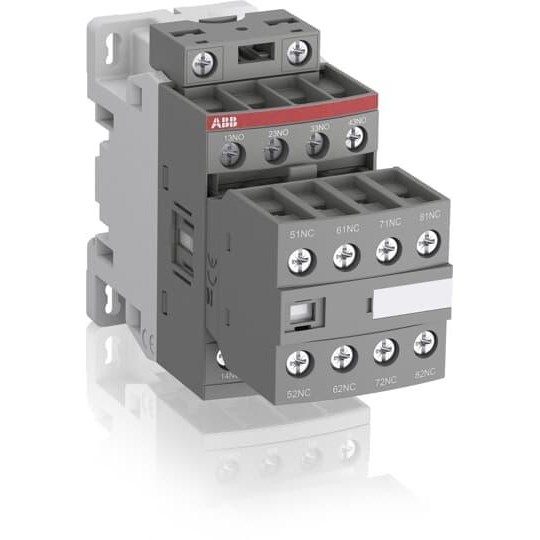

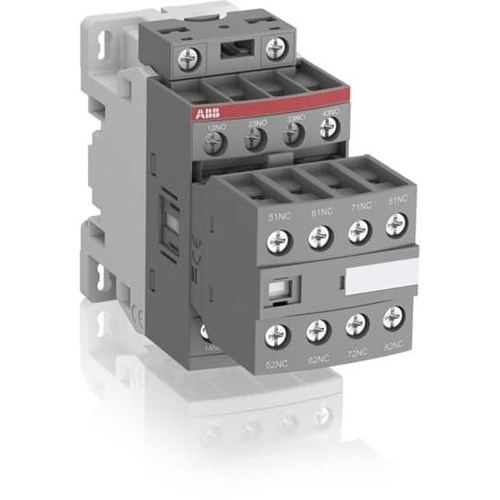

ABB NF80E11 Contactor Relay 20-60VDC 8NO 50/60Hz

Product Code: NF80E11

  • Operates at 20-60 VDC, 24-60 VAC
  • Contact configuration: 8NO
  • IP20 protection rating
  • Compact size: 110.5 x 45 x 86 mm
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Contactor Relays
Brand
ABB

Electrical

No. of N/C Contacts
0
No. of N/O Contacts
8
Rated Control Supply Voltage (Us)
50 Hz 24 ... 60V 60 Hz 24 ... 60V DC Operation 20 ... 60V
Rated Operational Current AC-15 (Ie)
(690V) 2A
Rated Frequency
50/60Hz
No. of Poles
8NO/0NC

Dimensions & Physical Data

Depth
110.5mm
Height
86mm
Weight
0.32kg
Width
45mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60335-2-40 LZGH2 A2L, UL 508, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 14-13
