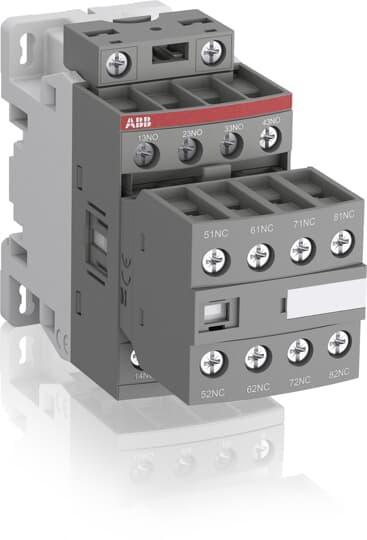

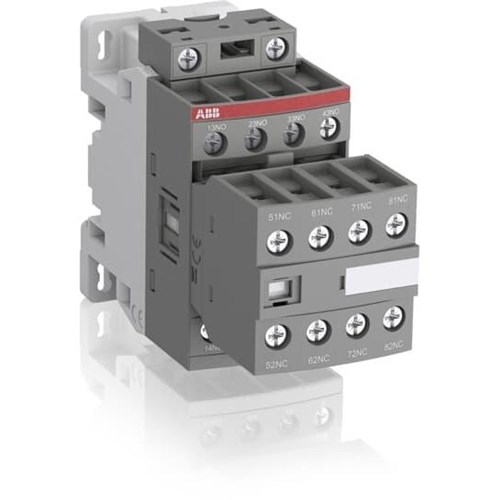

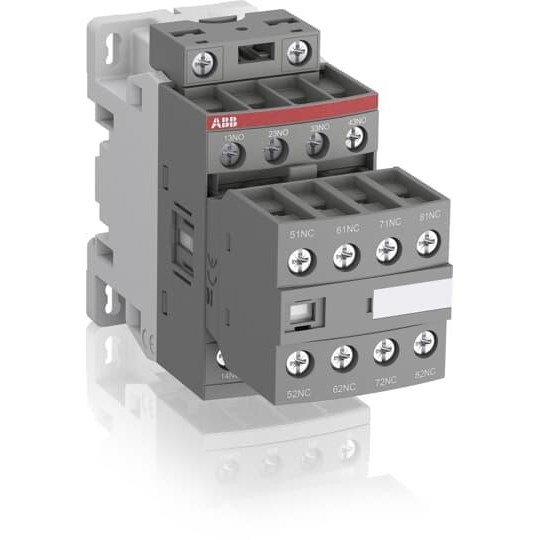

ABB NF62E13 Contactor Relay 100-250V 6NO 50/60Hz

Product Code: NF62E13

  • Rated Voltage: 100-250 V, Current up to 6 A
  • IP20 protection with M4 screw terminals
  • Operates in -40 to 70°C environments
  • Compliant with IEC/EN & UL standards
  • Compact size: 110.5 x 45 x 86 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Contactor Relays
Brand
ABB

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
6
Rated Control Supply Voltage (Us)
50 Hz 100 ... 250V 60 Hz 100 ... 250V DC Operation 100 ... 250V
Rated Operational Current AC-15 (Ie)
(690V) 2A
Rated Frequency
50/60Hz
No. of Poles
6NO/2NC

Dimensions & Physical Data

Depth
110.5mm
Height
86mm
Weight
0.32kg
Width
45mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60335-2-40 LZGH2 A2L, UL 508, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 14-13
