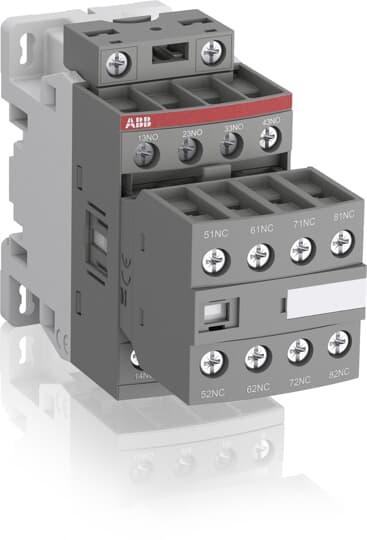

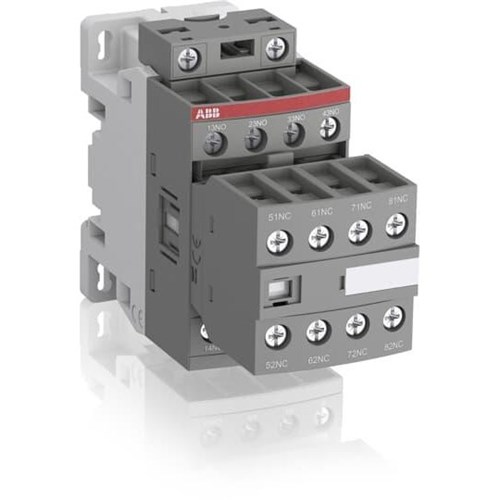

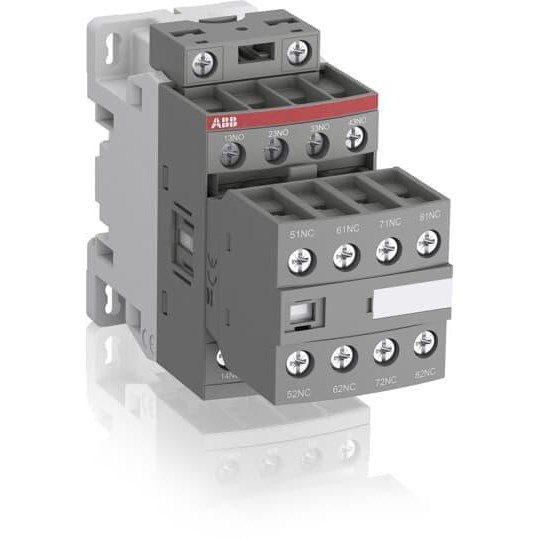

ABB NF44E13 Contactor Relay 100-250V 4NO 50/60Hz

Product Code: NF44E13

  • Supports 100-250 V for versatile applications
  • Rated impulse withstand voltage of 6 kV
  • 4NO contact configuration with M4 screw terminals
  • Compact design: 110.5 mm x 45 mm x 86 mm
  • Complies with ROHS, REACH, CE and more
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Contactor Relays
Brand
ABB

Electrical

No. of N/C Contacts
4
No. of N/O Contacts
4
Rated Control Supply Voltage (Us)
50 Hz 100 ... 250V 60 Hz 100 ... 250V DC Operation 100 ... 250V
Rated Operational Current AC-15 (Ie)
(690V) 2A
Rated Frequency
50/60Hz
No. of Poles
4NO/4NC

Dimensions & Physical Data

Depth
110.5mm
Height
86mm
Weight
0.32kg
Width
45mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60335-2-40 LZGH2 A2L, UL 508, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 14-13
