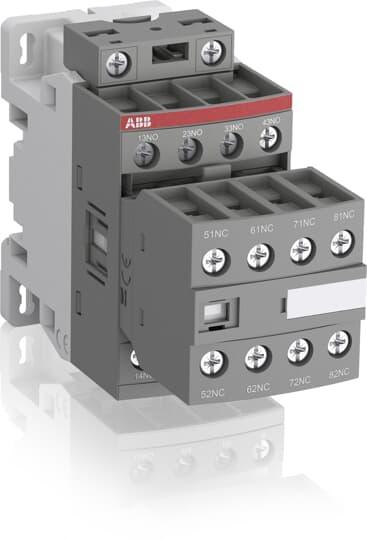

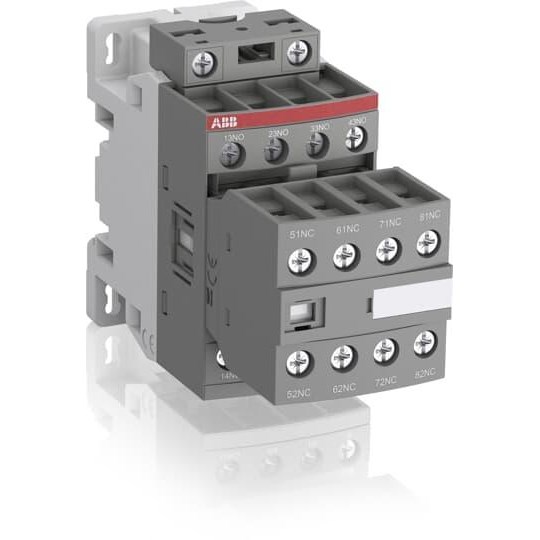

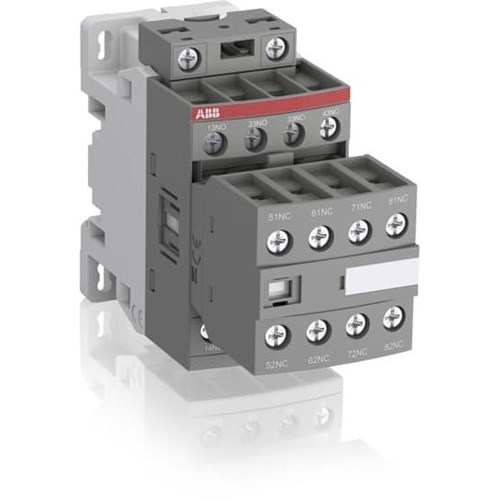

ABB NF44E11 Contactor Relay 20-60VDC 4NO 50/60Hz

Product Code: NF44E11

  • Operates on 20-60 VDC and 24-60 VAC
  • Rated current up to 6 A
  • IP20 protection for safe use
  • Mounts on standard 35 x 15 mm rail
  • Complies with multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Contactor Relays
Brand
ABB

Electrical

No. of N/C Contacts
4
No. of N/O Contacts
4
No. of Poles (NO/NC)
4NO/4NC
Rated Control Supply Voltage (Us)
50 Hz 24 ... 60 V 60 Hz 24 ... 60 V DC Operation 20 ... 60 V
Rated Operational Current AC-15 (Ie)
(690 V) 2 A
Rated Frequency
50 / 60 Hz

Dimensions & Physical Data

Depth
110.5 mm
Height
86 mm
Weight
0.32 kg
Width
45 mm

Environmental

Ambient Temperature
-40 ... 70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60335-2-40 LZGH2 A2L, UL 508, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 14-13
