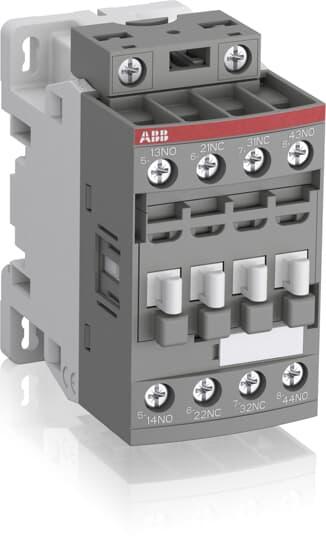

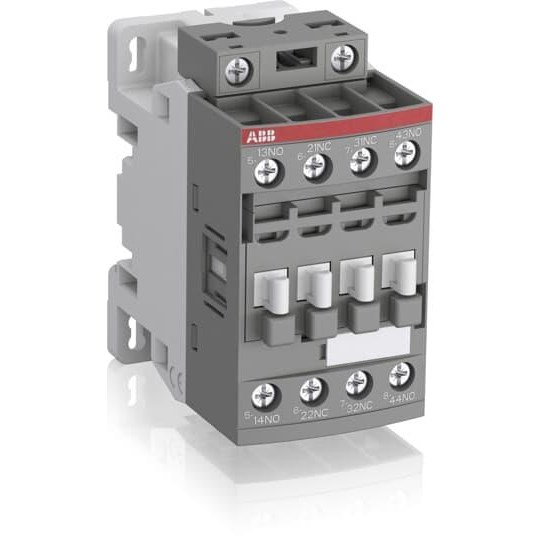

ABB NF31E13 Contactor Relay 100-250V 3NO 50/60Hz

Product Code: NF31E13

  • Handles 100-250 VAC/VDC voltages
  • Suitable for 35 x 15 mm rail mounting
  • IP20 protection rating
  • Operates in -40 to 70°C conditions
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Contactor Relays
Brand
ABB

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
3
Rated Control Supply Voltage (Us)
50 Hz 100 ... 250V 60 Hz 100 ... 250V DC Operation 100 ... 250V
Rated Operational Current AC-15 (Ie)
(690V) 2A
Rated Frequency
50/60Hz
No. of Poles
3NO/1NC

Dimensions & Physical Data

Depth
77mm
Height
86mm
Weight
0.27kg
Width
45mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60335-2-40 LZGH2 A2L, UL 508, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 14-13
