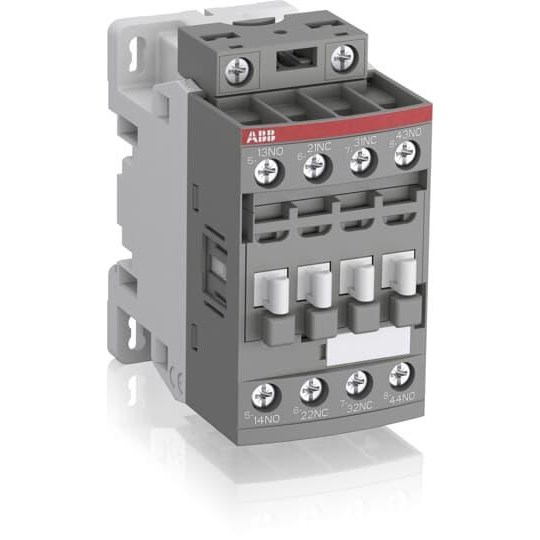

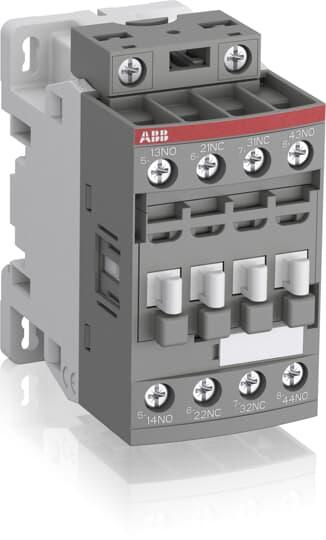

ABB NF22E11 Contactor Relay 20-60VDC 2NO 50/60Hz

Product Code: NF22E11

  • Supports 20-60 VDC & 24-60 VAC circuit voltage
  • Handles current up to 16 A air thermal
  • IP20 protection for enhanced safety
  • Compact size: 77x45x86 mm, lightweight at 0.27 kg
  • Wide temp range: -40 to 70°C operational
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Contactor Relays
Brand
ABB

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Control Supply Voltage (Us)
50 Hz 24 ... 60V 60 Hz 24 ... 60V DC Operation 20 ... 60V
Rated Operational Current AC-15 (Ie)
(690V) 2A
Rated Frequency
50/60Hz
No. of Poles
2NO/2NC

Dimensions & Physical Data

Depth
77mm
Height
86mm
Weight
0.27kg
Width
45mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60335-2-40 LZGH2 A2L, UL 508, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 14-13
