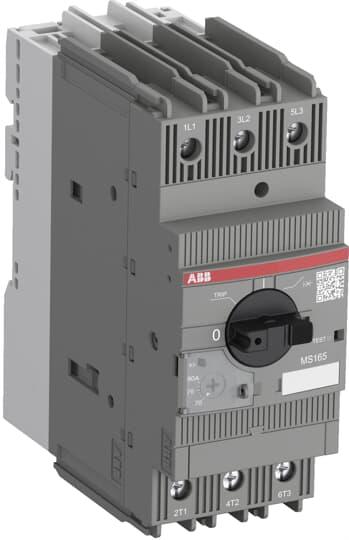

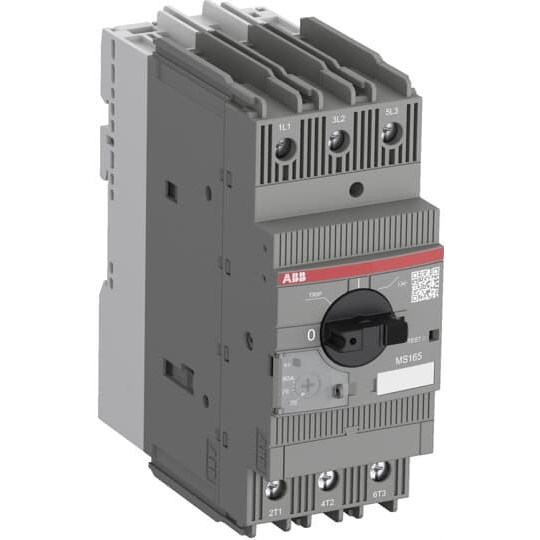

ABB MS165-32 Manual Motor Starter 15kW 690VAC 32A

Product Code: MS165-32

  • Rated for 690 VAC and 32 A
  • Rotary handle actuator type
  • IP20 protection rating
  • Thermomagnetic switching
  • Compact size: 55x142.65x122.1 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Manual Motor Starter
Brand
ABB

Electrical

Thermal Current Setting Range
23A to 32A
Switch Type
Manual Motor Starter

Dimensions & Physical Data

Depth
122.1mm
Height
142.65mm
Weight
0.97kg
Width
55mm

Environmental

Ambient Temperature
-25°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
CSA 22.2 No. 14 IEC/EN 60947-1 IEC/EN 60947-2 IEC/EN 60947-4-1 UL 60947-4-1

Documents

IPD Product Catalogue V17
