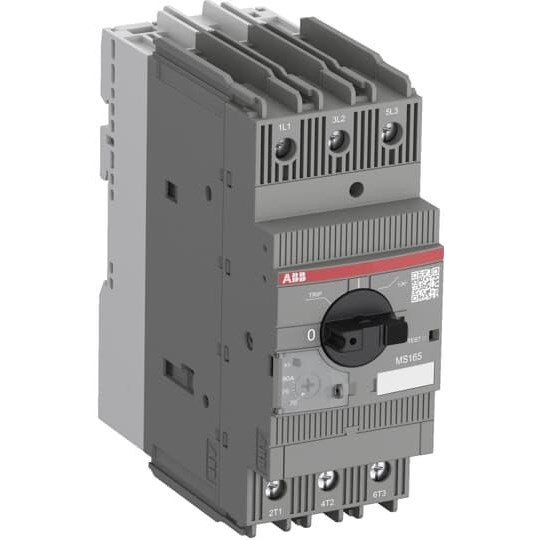

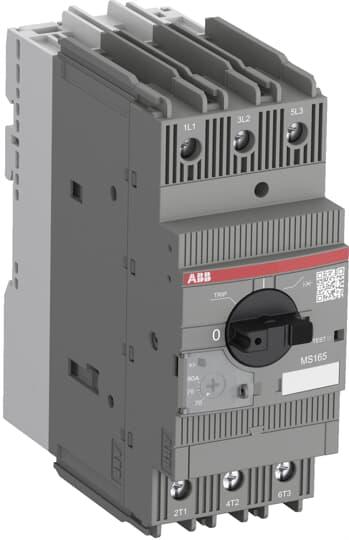

ABB MS165-25 Manual Motor Starter 11kW 690VAC 25A

Product Code: MS165-25

  • Rated voltage up to 690 VAC
  • Current range: 18-25 A
  • Rotary handle actuator for ease of use
  • Compact dimensions: 55x142.65x122.1 mm
  • High breaking capacity of 100 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Manual Motor Starter
Brand
ABB

Electrical

Thermal Current Setting Range
18A to 25A
Switch Type
Manual Motor Starter

Dimensions & Physical Data

Depth
122.1mm
Height
142.65mm
Weight
0.96kg
Width
55mm

Environmental

Ambient Temperature
-25°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
CSA 22.2 No. 14 IEC/EN 60947-1 IEC/EN 60947-2 IEC/EN 60947-4-1 UL 60947-4-1
