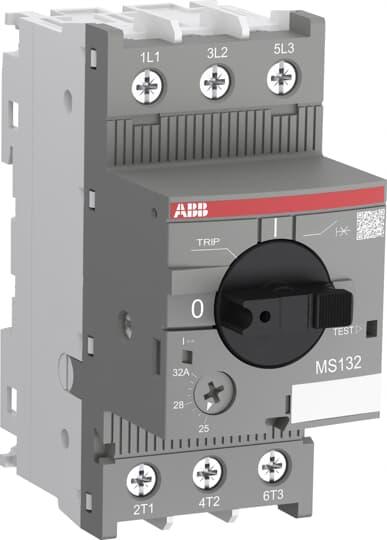

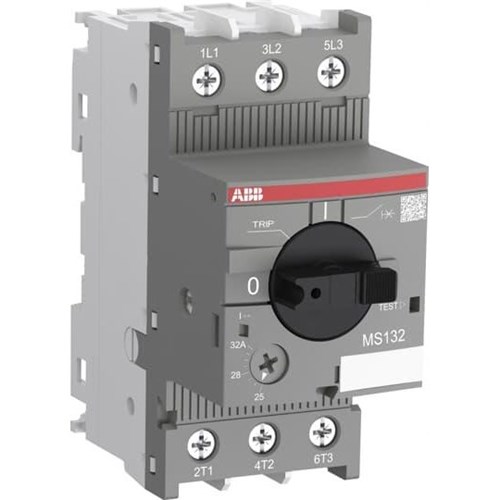

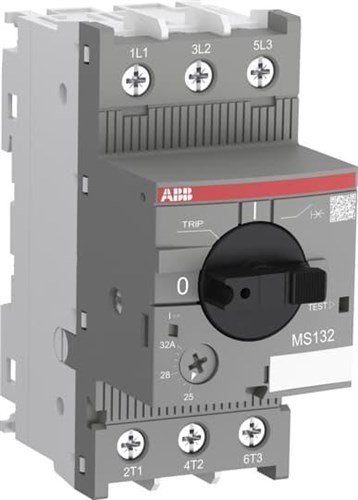

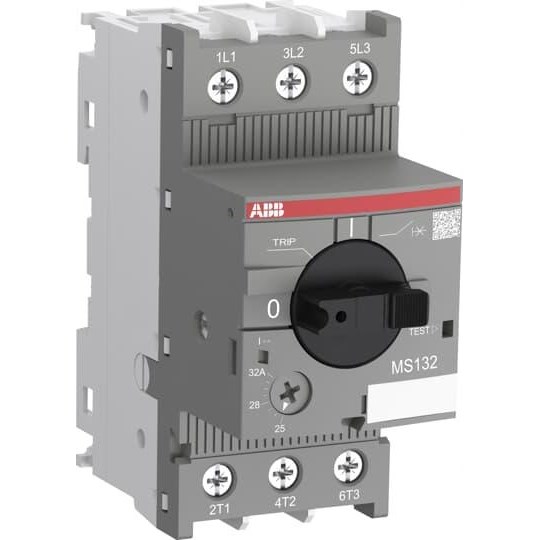

ABB MS132-20 Manual Motor Starter 7.5kW 690VAC 20A

Product Code: MS132-20

  • Rated voltage of 690 VAC, current 20 A
  • Rotary handle for easy operation
  • IP20 protection against solid objects
  • Compact dimensions: 45x97.8x86.55 mm
  • High durability with 50,000 cycles
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Manual Motor Starter
Brand
ABB

Electrical

Thermal Current Setting Range
16A to 20A
Switch Type
Thermal and electromagnetic

Dimensions & Physical Data

Depth
86.55mm
Height
97.8mm
Weight
0.31kg
Width
45mm

Environmental

Ambient Temperature
Operation open compensated: -25 ... +60°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-2; IEC/EN 60947-4-1; UL 60947-1; UL 60947-4-1

Documents

IPD Product Catalogue V17
