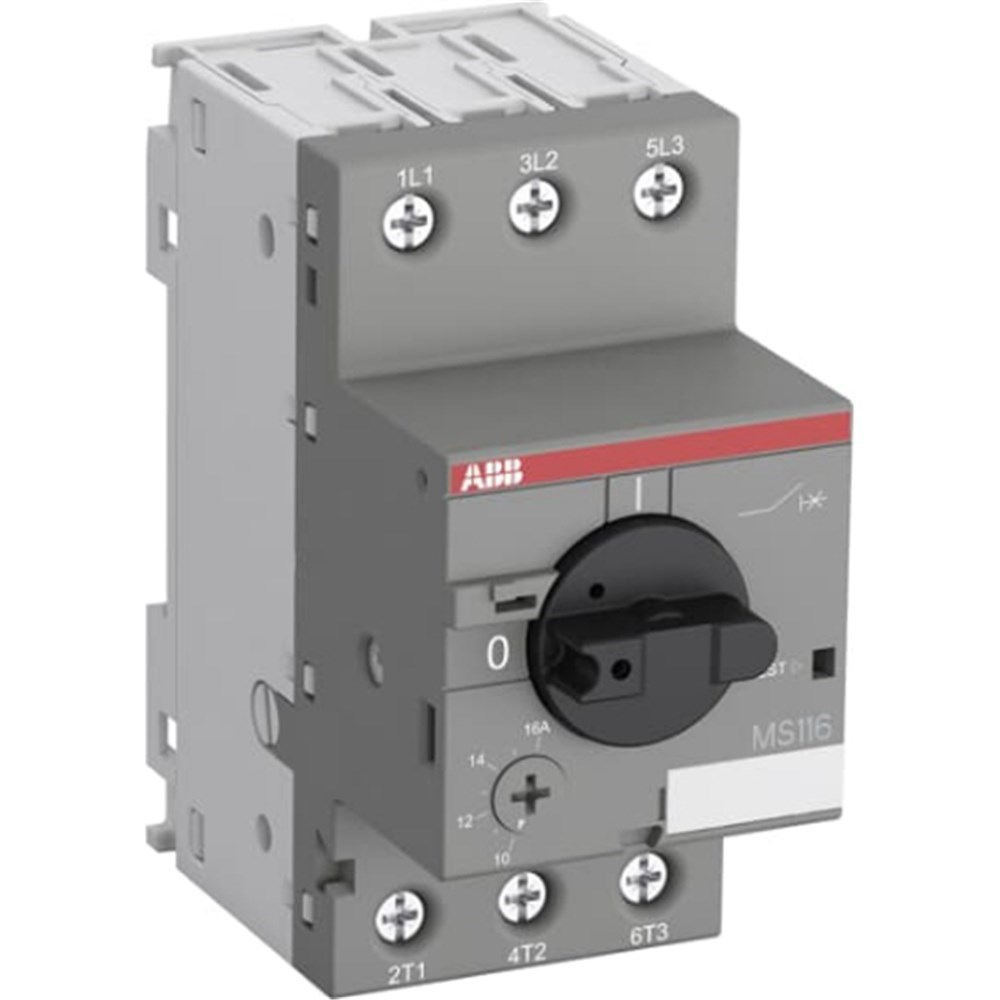

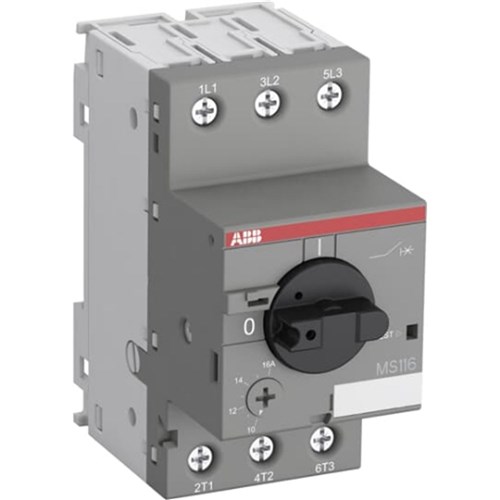

ABB MS116-6.3 Manual Motor Starter 2.2kW 690V 6.3A

Product Code: MS116-6.3

  • Rated voltage of 690 V for high efficiency
  • Rotary handle actuator for easy operation
  • IP20 protection against solid objects
  • Compact size: 45mm width, 90mm height
  • Thermomagnetic switching type
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Manual motor starter
Brand
ABB

Electrical

Thermal Current Setting Range
4.00 ... 6.30 A
Switch Type
Thermal and electromagnetic

Dimensions & Physical Data

Depth
80.1 mm
Height
90 mm
Weight
0.265 kg
Width
45 mm

Environmental

Ambient Temperature
Operation open compensated: -25 ... +55 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-2; IEC/EN 60947-4-1; UL 60947-1; UL 60947-4-1

Documents

IPD Product Catalogue V17
