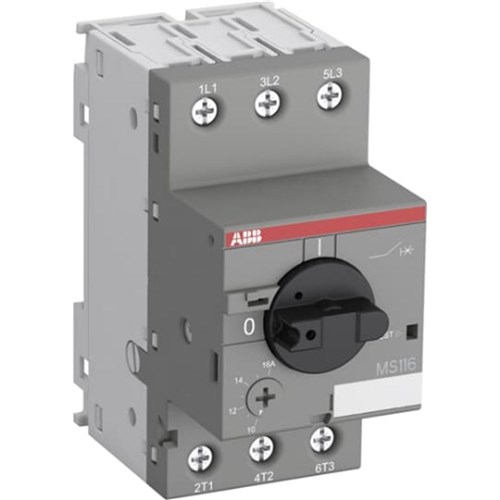

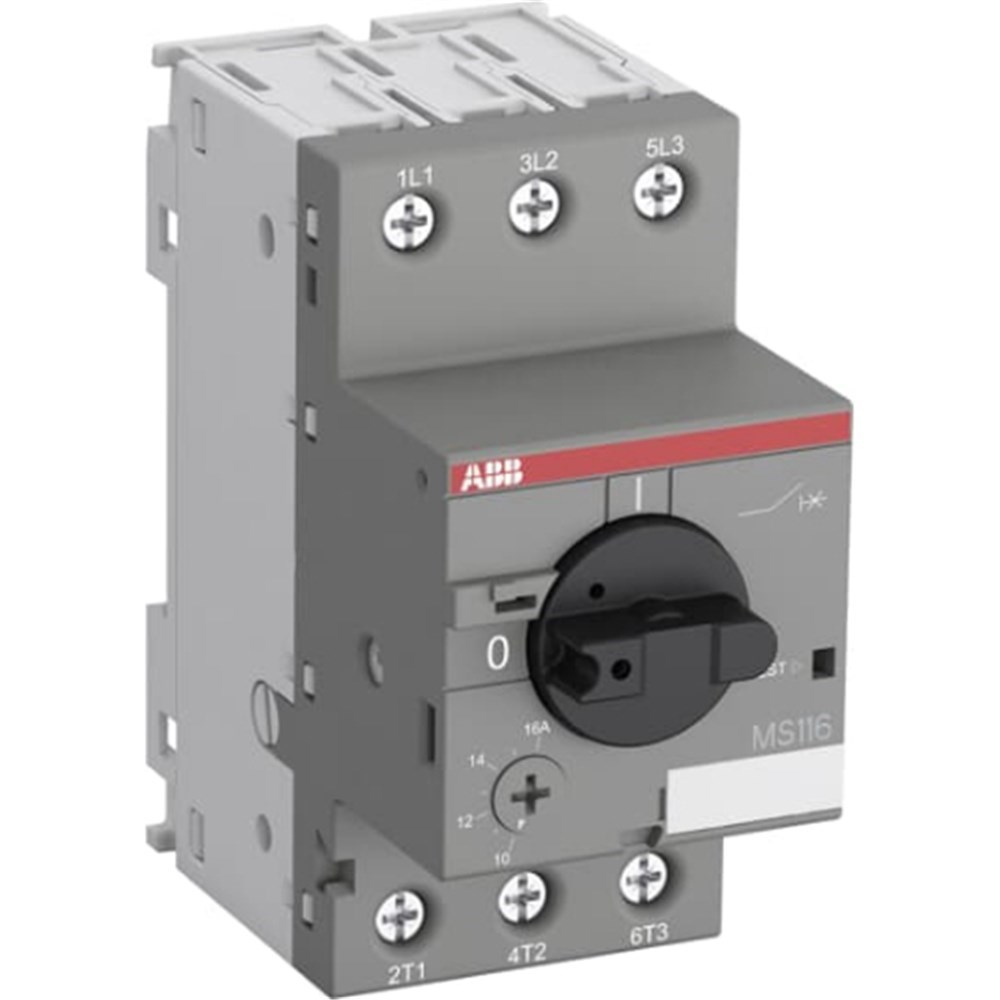

ABB MS116-4.0 Manual Motor Starter 1.5kW 690V 4A

Product Code: MS116-4.0

  • Rated voltage up to 690 V
  • Rotary handle for easy operation
  • IP20 protection rating
  • Compact size: 45mm width
  • Thermomagnetic switching
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Manual motor starter
Brand
ABB

Electrical

Thermal Current Setting Range
2.50 ... 4.00 A
Switch Type
Thermal and electromagnetic

Dimensions & Physical Data

Depth
80.1 mm
Height
90 mm
Weight
0.265 kg
Width
45 mm

Environmental

Ambient Temperature
Operation open compensated: -25 ... +55 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-2; IEC/EN 60947-4-1; UL 60947-1; UL 60947-4-1

Documents

IPD Product Catalogue V17
