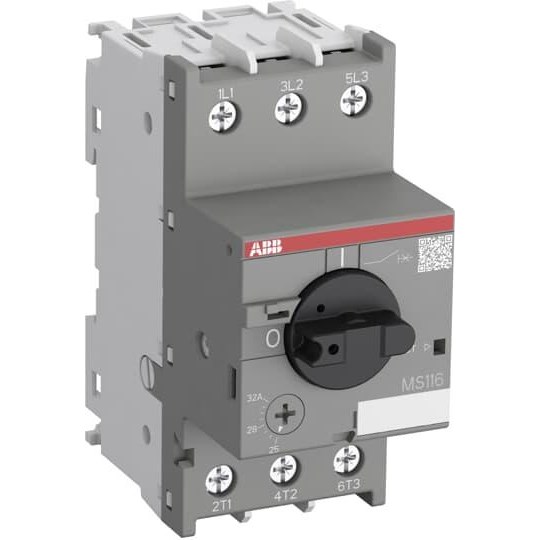

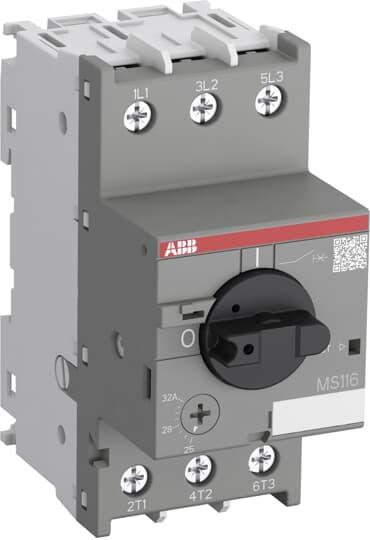

ABB MS116-25 Manual Motor Starter 11kW 690V 10A

Product Code: MS116-25

  • Rated voltage of 690 V for high power applications
  • Rotary handle actuator for easy operation
  • IP20 protection against solid objects
  • Compact size: 45 mm width, 97.8 mm height
  • Compliance with IEC and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Manual Motor Starter
Brand
ABB

Electrical

Thermal Current Setting Range
20A to 25A
Switch Type
Thermal and electromagnetic

Dimensions & Physical Data

Depth
79.9mm
Height
97.8mm
Weight
0.31kg
Width
45mm

Environmental

Ambient Temperature
Operation open compensated: -25 ... +55°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-2; IEC/EN 60947-4-1; UL 60947-1; UL 60947-4-1

Documents

IPD Product Catalogue V17
