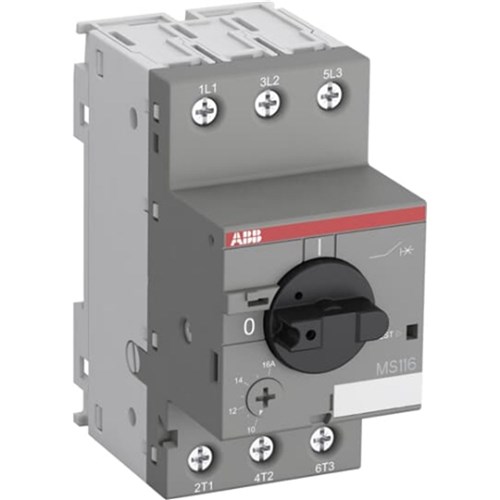

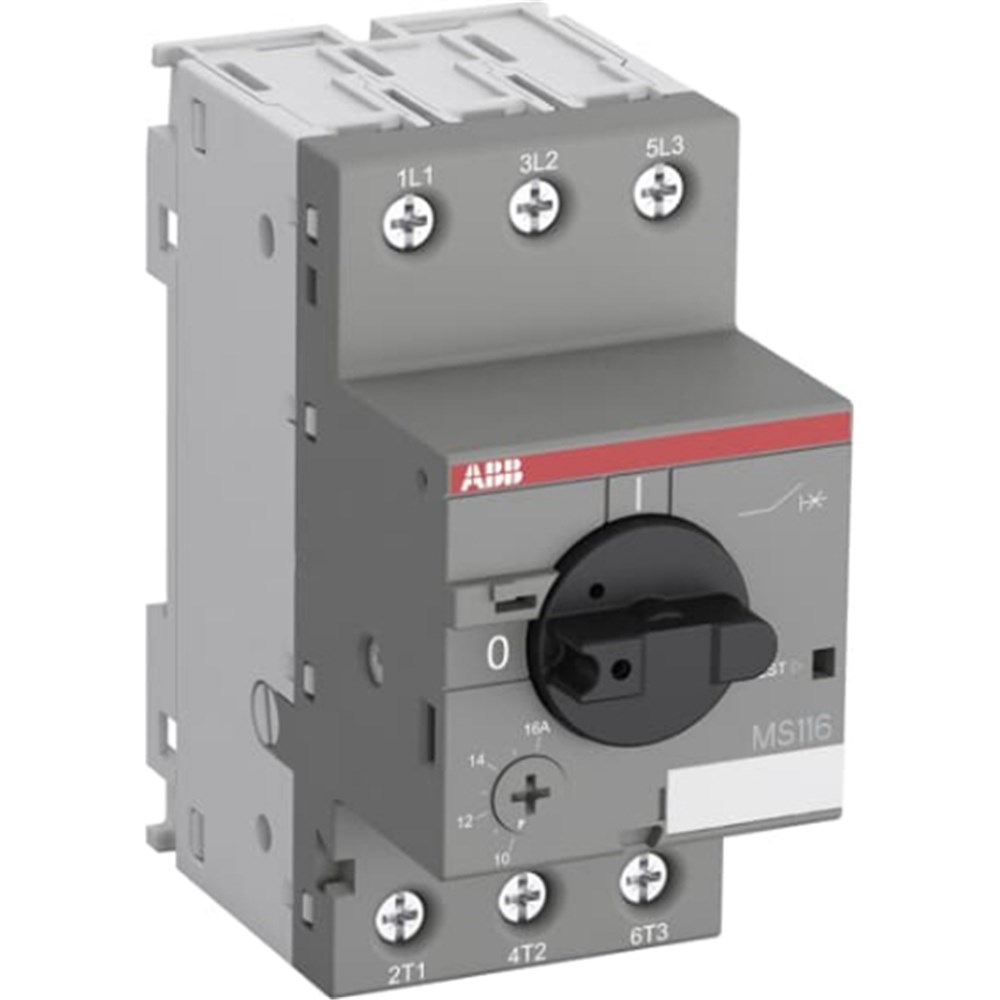

ABB MS116-2.5 Manual Motor Starter 0.75kW 690V 2.5A

Product Code: MS116-2.5

  • Rated voltage up to 690 V
  • Rotary handle actuator for easy use
  • Compact size: 45 mm width
  • IP20 protection rating
  • Thermomagnetic switching type
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Manual motor starter
Brand
ABB

Electrical

Thermal Current Setting Range
1.60 ... 2.50 A
Switch Type
Thermal and electromagnetic

Dimensions & Physical Data

Depth
80.1 mm
Height
90 mm
Weight
0.265 kg
Width
45 mm

Environmental

Ambient Temperature
Operation open compensated: -25 ... +55 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-2; IEC/EN 60947-4-1; UL 60947-1; UL 60947-4-1

Documents

IPD Product Catalogue V17
