Products

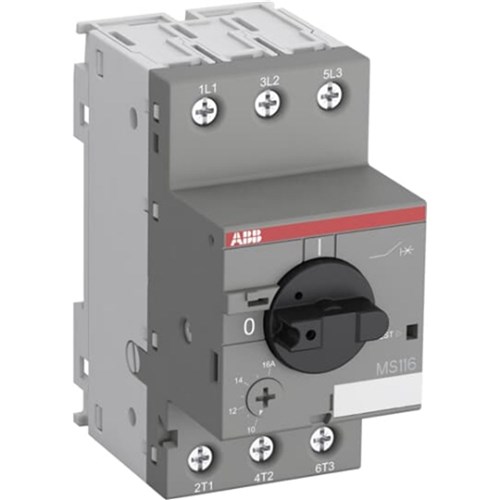

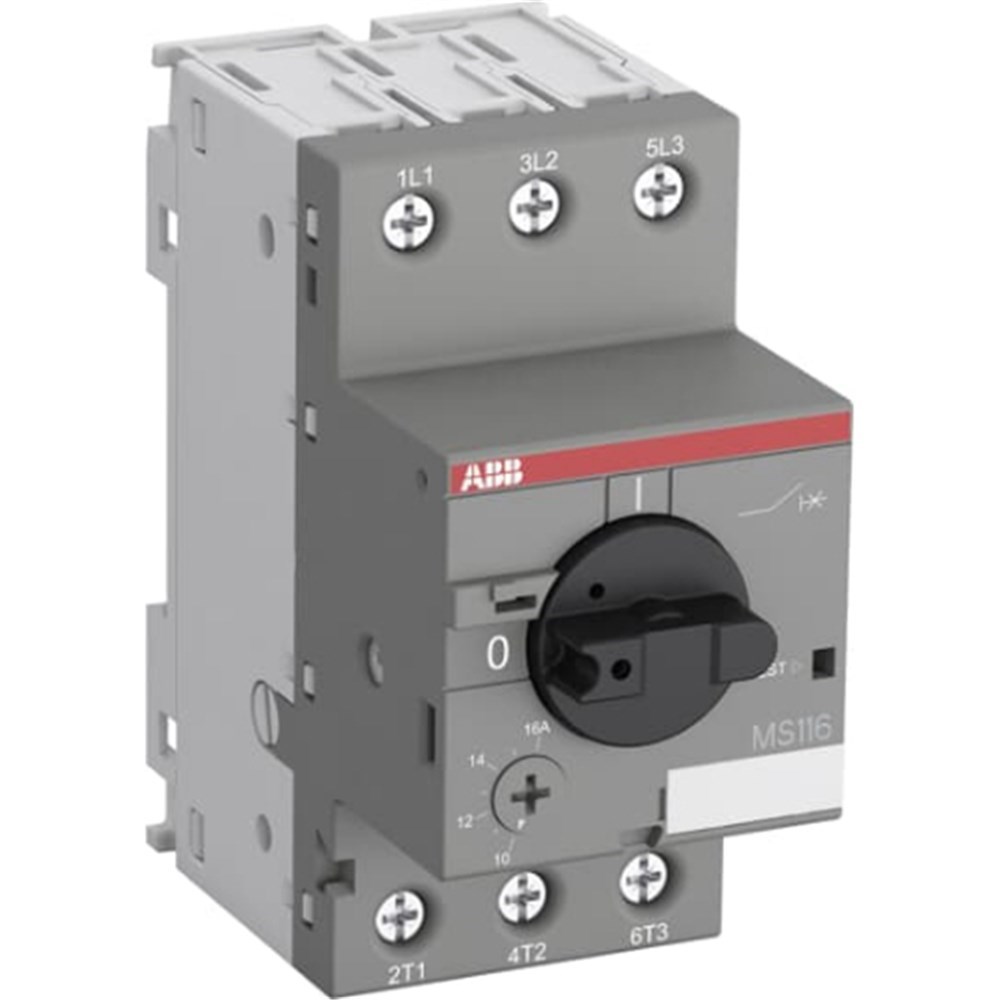

ABB MS116-1.6 Manual Motor Starter 0.55kW 690V 1.6A

Product Code: MS116-1.6

  • Rated Voltage up to 690 V
  • Compact size: W45 x H90 x D85.6 mm
  • Thermomagnetic switching for reliability
  • Rotary handle actuator for easy control
  • IP20 protection against solid objects
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Manual Motor Starter
Brand
ABB

Electrical

Thermal Current Setting Range
1A to 1.6A
Switch Type
Thermal and electromagnetic

Dimensions & Physical Data

Depth
80.1mm
Height
90mm
Weight
0.265kg
Width
45mm

Environmental

Ambient Temperature
Operation open compensated: -25 ... +55°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-2; IEC/EN 60947-4-1; UL 60947-1; UL 60947-4-1

Documents

IPD Product Catalogue V17
