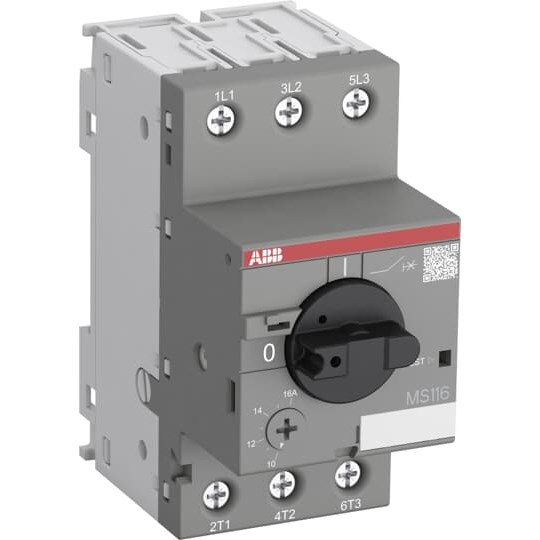

ABB MS116-0.25 Manual Motor Starter 0.06kW 690V 0.25A

Product Code: MS116-0.25

  • Rated voltage up to 690 V
  • Compact size: 45 mm wide, 90 mm high
  • Rotary handle actuator for easy operation
  • High breaking capacity of 100 kA
  • IP20 protection against solid objects
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Manual Motor Starter
Brand
ABB

Electrical

Thermal Current Setting Range
0.16A to 0.25A
Switch Type
Manual Motor Starter

Dimensions & Physical Data

Depth
85.6mm
Height
90mm
Weight
0.225kg
Width
45mm

Environmental

Ambient Temperature
-25°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-2 IEC/EN 60947-4-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L

Documents

IPD Product Catalogue V17
