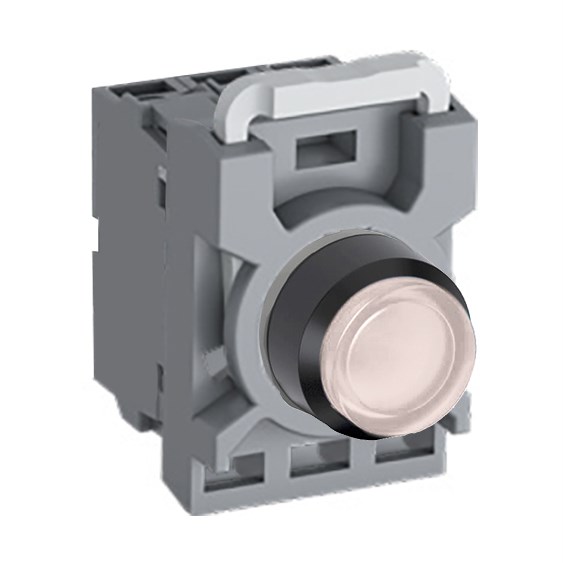

ABB MPPIEWA111 Illuminated Push Button Kit 1NO+1NC

Product Code: MPPIEWA111

  • Operates at 24 VAC/DC with maintained function
  • IP66 front protection for robust use
  • Extended actuator with white LED illumination
  • Compact 22 mm cutout size for easy installation
  • Includes operator, contact block, and LED block
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pushbutton KIT
Brand
ABB
Series
Modular Plastic

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Terminal Type
Screw Connection
Contact Block Thermal Current (Ith)
10 A
Contact Block Rated Current (Ie)
AC: 8 A (120 V), 6 A (230 V) DC:5 A (24 V)

Mechanical

Actuator Type
Extended
Bezel Material
Plastic
Lamp Colour
White
Lens Colour
White
Switching Function
Maintained

Dimensions & Physical Data

Length
134.6 mm

Environmental

IP Rating
IP66

Documents

IPD Product Catalogue V17
