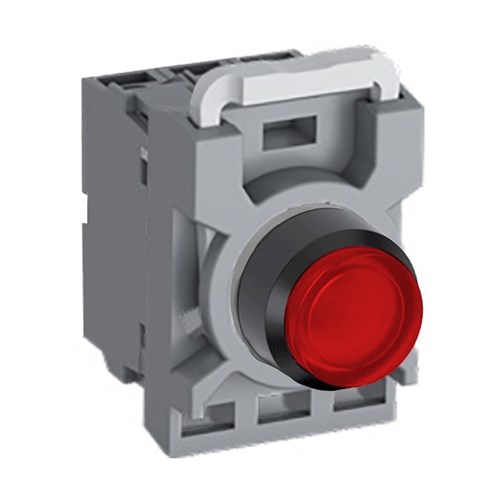

ABB MPPIERA302 Illuminated Push Button Kit 0NO+2NC

Product Code: MPPIERA302

  • 220 VDC illuminated operation
  • IP66 front protection, IP20 terminal
  • Extended actuator with 22 mm diameter
  • Red LED lamp for clear indication
  • Maintained function with 2NC contacts
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pushbutton KIT
Brand
ABB
Series
Modular Plastic

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Terminal Type
Screw Connection
Contact Block Thermal Current (Ith)
10 A
Contact Block Rated Current (Ie)
AC: 8 A (120 V), 6 A (230 V) DC:5 A (24 V)

Mechanical

Actuator Type
Extended
Bezel Material
Plastic
Lamp Colour
Red
Lens Colour
Red
Switching Function
Maintained

Dimensions & Physical Data

Length
134.6 mm

Environmental

IP Rating
IP66

Documents

IPD Product Catalogue V17
