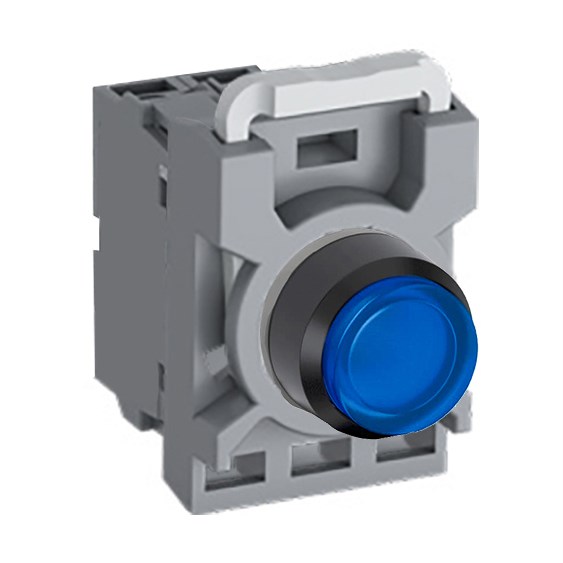

ABB MPPIELO001 Illuminated Push Button Kit 0NO+1NC

Product Code: MPPIELO001

  • Operates at 12 VAC/DC with blue LED illumination
  • IP66 front protection for robust environments
  • Extended actuator with a 22 mm diameter
  • Momentary function with 1NC contact configuration
  • Rated thermal current of 10 A
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pushbutton KIT
Brand
ABB
Series
Modular Plastic

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
0
Terminal Type
Screw Connection
Contact Block Thermal Current (Ith)
10 A
Contact Block Rated Current (Ie)
AC: 8 A (120 V), 6 A (230 V) DC:5 A (24 V)

Mechanical

Actuator Type
Extended
Bezel Material
Plastic
Lamp Colour
Blue
Lens Colour
Blue
Switching Function
Momentary

Dimensions & Physical Data

Length
134.6 mm

Environmental

IP Rating
IP66

Documents

IPD Product Catalogue V17
