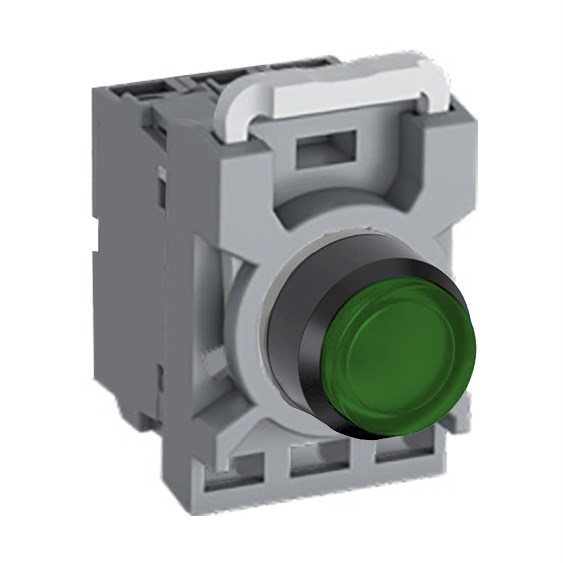

ABB MPPIEGA302 Illuminated Push Button Kit 0NO+2NC

Product Code: MPPIEGA302

  • IP66 front protection for harsh environments
  • Operates at -25 to 70°C ambient temp
  • Green LED illumination with maintained function
  • Extended actuator with 22mm diameter
  • Includes operator, contact block & LED block
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pushbutton KIT
Brand
ABB
Series
Modular Plastic

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Terminal Type
Screw Connection
Contact Block Thermal Current (Ith)
10 A
Contact Block Rated Current (Ie)
AC: 8 A (120 V), 6 A (230 V) DC:5 A (24 V)

Mechanical

Actuator Type
Extended
Bezel Material
Plastic
Lamp Colour
Green
Lens Colour
Green
Switching Function
Maintained

Dimensions & Physical Data

Length
134.6 mm

Environmental

IP Rating
IP66

Documents

IPD Product Catalogue V17
