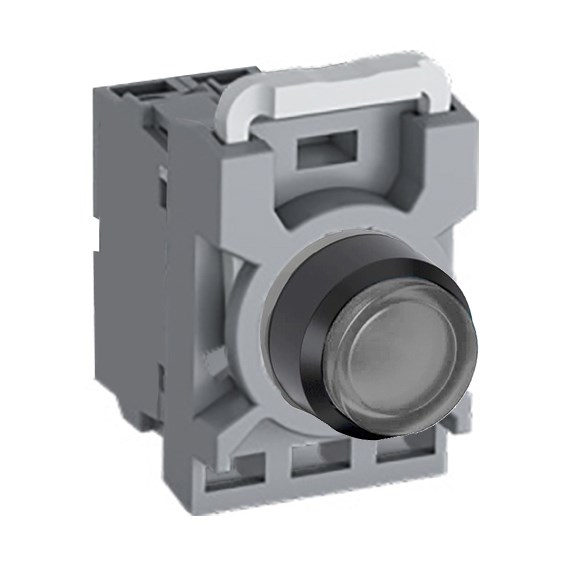

ABB MPPIECO101 Illuminated Push Button Kit 0NO+1NC

Product Code: MPPIECO101

  • Operates on 24 VAC/DC with clear LED illumination
  • IP66 front protection, suitable for harsh environments
  • Extended actuator with a 22 mm diameter cutout
  • Rated thermal current of 10 A for reliable performance
  • Includes operator, contact block, and LED block
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pushbutton KIT
Brand
ABB
Series
Modular Plastic

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
0
Terminal Type
Screw Connection
Contact Block Thermal Current (Ith)
10 A
Contact Block Rated Current (Ie)
AC: 8 A (120 V), 6 A (230 V) DC:5 A (24 V)

Mechanical

Actuator Type
Extended
Bezel Material
Plastic
Lamp Colour
Clear
Lens Colour
Clear
Switching Function
Momentary

Dimensions & Physical Data

Length
134.6 mm

Environmental

IP Rating
IP66
