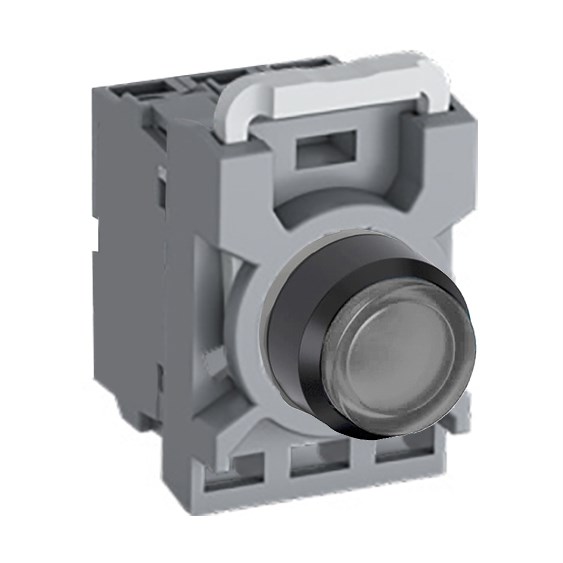

ABB MPPIECA011 Illuminated Push Button Kit 1NO+1NC

Product Code: MPPIECA011

  • 12V AC/DC illuminated with clear LED lamp
  • IP66 front protection for robust use
  • Operates in -25 to 70°C temperature range
  • 1NO+1NC contact configuration, maintained function
  • Includes operator, contact block & LED block
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pushbutton KIT
Brand
ABB
Series
Modular Plastic

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Terminal Type
Screw Connection
Contact Block Thermal Current (Ith)
10 A
Contact Block Rated Current (Ie)
AC: 8 A (120 V), 6 A (230 V) DC:5 A (24 V)

Mechanical

Actuator Type
Extended
Bezel Material
Plastic
Lamp Colour
Clear
Lens Colour
Clear
Switching Function
Maintained

Dimensions & Physical Data

Height
26 mm
Length
134.6 mm

Environmental

IP Rating
IP66
