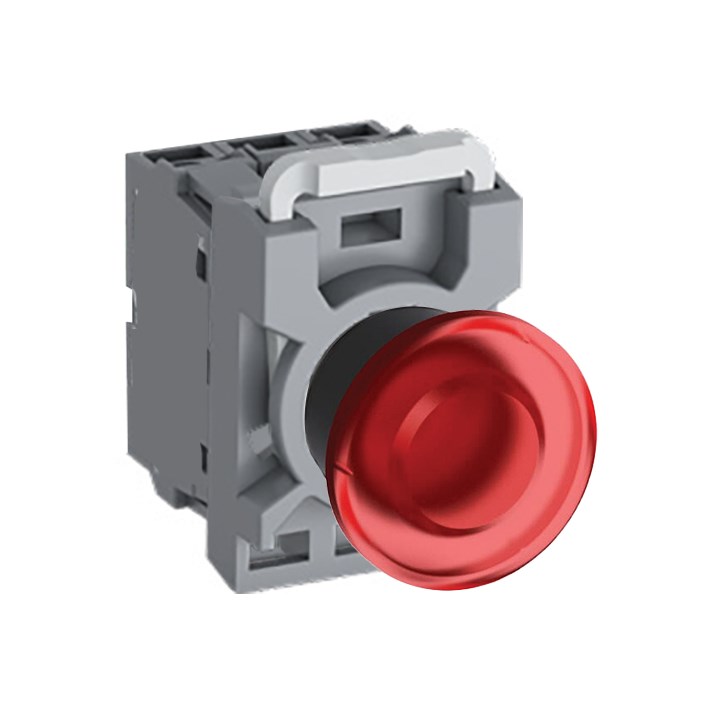

ABB MPMI4R302 Illuminated Mushroom Push Button Kit 0NO+2NC

Product Code: MPMI4R302

  • Rated Voltage: 220 VDC, LED illuminated
  • Operational Temp: -25 to 70°C
  • Protection: IP66 front, IP20 terminal
  • Contact Config: 2NC, Momentary function
  • Standards: EN IEC 60947 series, UL 508
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mushroom Push Button Kit
Brand
ABB
Series
Modular Plastic

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Terminal Type
Screw Connection
Contact Block Thermal Current (Ith)
10 A
Contact Block Rated Current (Ie)
AC: 8 A (120 V), 6 A (230 V) DC:5 A (24 V)

Mechanical

Actuator Type
Extended
Bezel Material
Plastic
Lamp Colour
Green
Lens Colour
Red
Switching Function
Momentary

Dimensions & Physical Data

Length
134.6 mm

Environmental

IP Rating
IP66

Documents

IPD Product Catalogue V17
