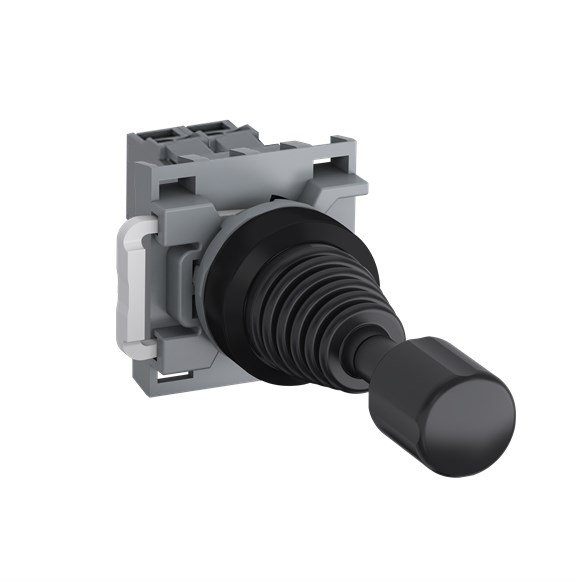

ABB MPJLO2H11 Momentary Joystick Operator Switch 22 mm Mounting Hole 1NO+1NC

Product Code: MPJLO2H11

  • Supports 48-60 VAC/VDC, 50/60 Hz operation
  • Illuminated with integrated clear LED
  • Operates in -25 to 70°C environments
  • Robust IP20, IP66, IP67, IP69K protection rating
  • NEMA rated: 1, 12, 13, 3R, 4, 4x
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Joystick Operator Switch
Brand
ABB
Series
Modular plastic

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Terminal Type
Screw Connection
No. of Directions
4
Contact Block Thermal Current (Ith)
10 A
Contact Block Rated Current (Ie)
AC: 8 A (120 V), 6 A (230 V) DC:5 A (24 V)

Mechanical

No. of Positions
2
Switch Colour
Black
Switch Material
Plastic
Switching Function
Momentary

Dimensions & Physical Data

Length
134.6 mm

Environmental

IP Rating
IP66, 67, 69K

Documents

IPD Product Catalogue V17
