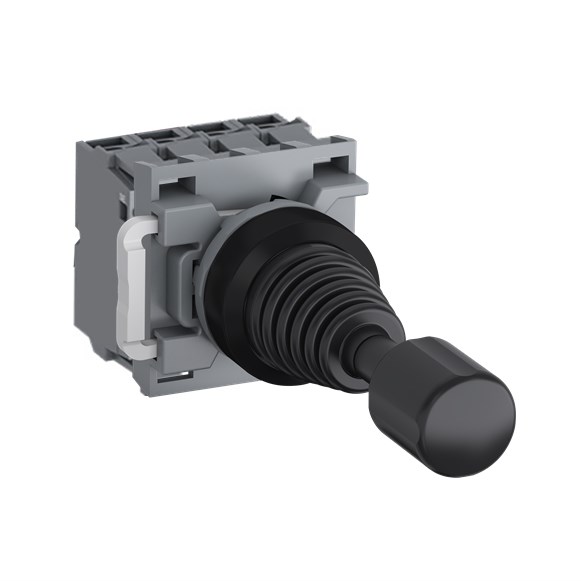

ABB MPJA413 Maintained Joystick Operator Switch 22 mm Mounting Hole 1NO+3NC

Product Code: MPJA413

  • Wide temp range: -25 to 70°C
  • High protection: IP20, IP66, IP67, IP69K
  • Screw terminals for secure connection
  • Supports cable size: 0.5-1.5 sq-mm
  • Rated insulation voltage of 300V
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Joystick Operator Switch
Brand
ABB
Series
Modular plastic

Electrical

No. of N/C Contacts
3
No. of N/O Contacts
1
Terminal Type
Screw Connection
No. of Directions
4
Contact Block Thermal Current (Ith)
10 A
Contact Block Rated Current (Ie)
AC: 8 A (120 V), 6 A (230 V) DC:5 A (24 V)

Mechanical

Lamp Colour
Green
No. of Positions
4
Switch Colour
Black
Switch Material
Plastic
Switching Function
Maintained

Dimensions & Physical Data

Length
134.6 mm

Environmental

IP Rating
IP66, 67, 69K

Documents

IPD Product Catalogue V17
