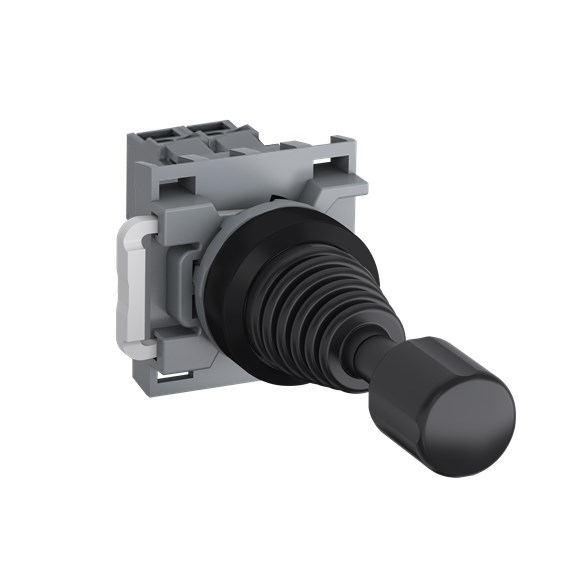

ABB MPJA402 Maintained Joystick Operator Switch 22 mm Mounting Hole 0NO+2NC

Product Code: MPJA402

  • Compact 40 mm width design
  • Operates in -25 to 70°C range
  • Durable IP20, IP66, IP67, IP69K protection
  • Screw terminal with 0.8 N-m torque
  • Rated insulation voltage of 300 V
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Joystick Operator Switch
Brand
ABB
Series
Modular plastic

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Terminal Type
Screw Connection
No. of Directions
4
Contact Block Thermal Current (Ith)
10 A
Contact Block Rated Current (Ie)
AC: 8 A (120 V), 6 A (230 V) DC:5 A (24 V)

Mechanical

Lamp Colour
Green
No. of Positions
4
Switch Colour
Black
Switch Material
Plastic
Switching Function
Maintained

Dimensions & Physical Data

Length
134.6 mm

Environmental

IP Rating
IP66, 67, 69K

Documents

IPD Product Catalogue V17
