Specifications

Product Type Miniature Circuit Breaker (MCB)	Brand ABB	Series S800S-UC
Application Commercial and industrial

No. of Poles (Total) 1	Rated Impulse Withstand Voltage (Uimp) 8kV	Rated Insulation Voltage (Ui) 1500V
Power Loss 8.3W	Rated Current (In) 100A	Rated Frequency 0Hz
Trip Curve UC-K	Terminal Type Screw Terminals	Electrical Life 1500
Mechanical Life 10000

Conductor Cross Section Flexible

0mm² to 50mm²

Conductor Cross Section Solid Core

0mm² to 70mm²

Housing Material

Material group I, RAL 7035

Depth 82.5mm	Height 95mm	Weight 0.245kg
Width 27mm	Width in No. of Modular Spacing 1.5	Pole Width 27mm

Rated Surrounding Temperature Without Derating 30°C	Pollution Degree 2	Storage Temperature -40°C to 70°C
Operating Temperature -40°C to 70°C	IP Rating IP20

Standards and Approvals

IEC/EN 60947-2

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. to AS/NZS 60947-2 at 230 VAC

(250V DC) 50kA

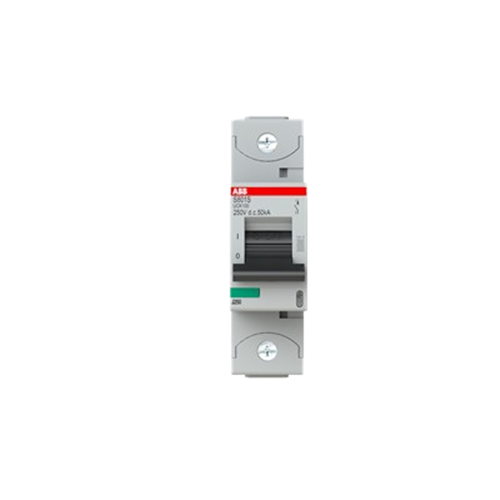

ABB Miniature Circuit Breaker 1 POLE 100A 50 kA 250VDC UC-K CURVE S801S-UCK100
