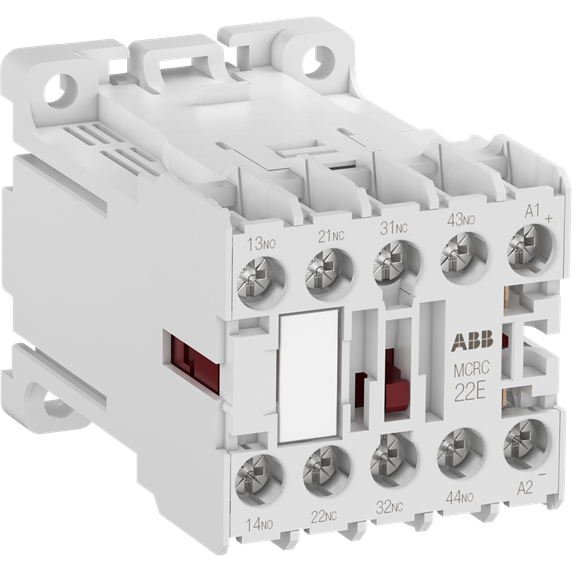

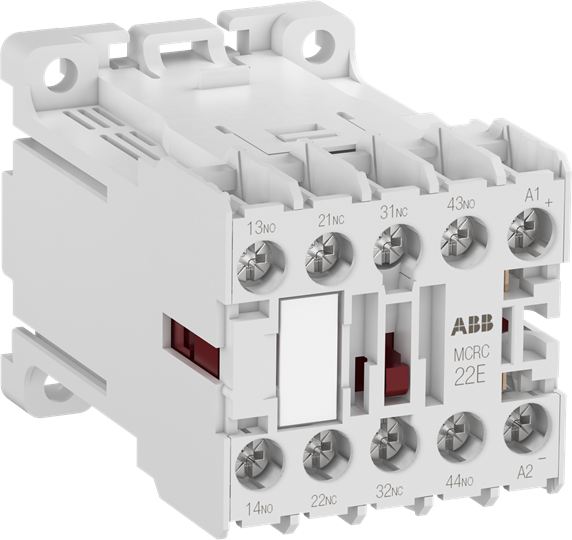

ABB MCRC031ATD Mini Contactor Relay 24VDC 1NC+3NO 50/60Hz

Product Code: MCRC031ATD

  • Compact mini contactor relay for DC applications
  • Rated voltage: 24 VDC, current: 6 A
  • Contact config: 1NC+3NO, screw terminals
  • IP20 protection with DIN rail mounting
  • Operates in -40 to 70°C temp range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactor Relay
Brand
ABB

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
3
Rated Control Supply Voltage (Us)
24 V DC
Rated Operational Current AC-15 (Ie)
6:00 AM
Rated Frequency
50/60 Hz
No. of Poles
3NO/1NC

Dimensions & Physical Data

Depth
68 mm
Height
48 mm
Weight
0.235 kg
Width
45 mm

Environmental

Ambient Temperature
-40 ... +70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-5-1
