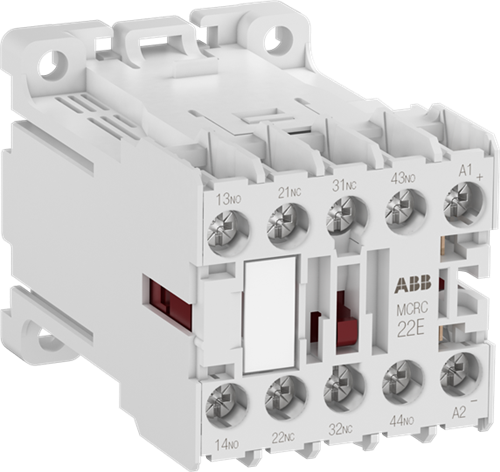

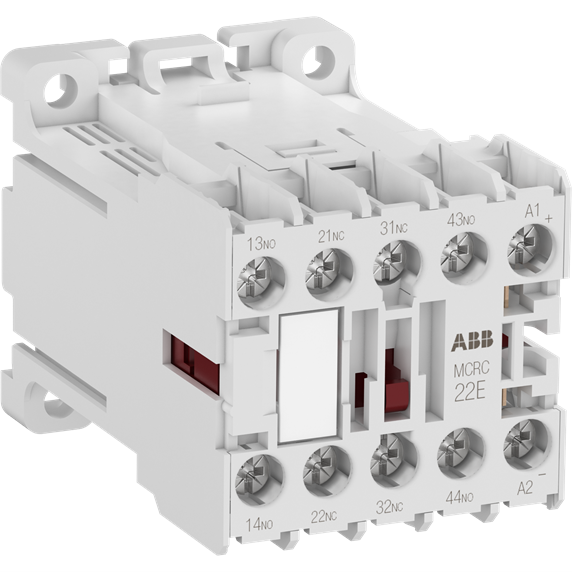

ABB MCRC022ATD Mini Contactor Relay 24VDC 2NC+2NO 50/60Hz

Product Code: MCRC022ATD

  • Compact design: 45mm width
  • Operates at 24 VDC
  • Contact config: 2NC+2NO
  • Mounts on DIN rail
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactor Relays
Brand
ABB

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
No. of Poles (NO/NC)
2NO/2NC
Rated Control Supply Voltage (Us)
24 V DC
Rated Operational Current AC-15 (Ie)
6 A
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
68 mm
Height
48 mm
Weight
0.235 kg
Width
45 mm

Environmental

Ambient Temperature
-40 ... +70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-5-1

Documents

IPD Product Catalogue V17
