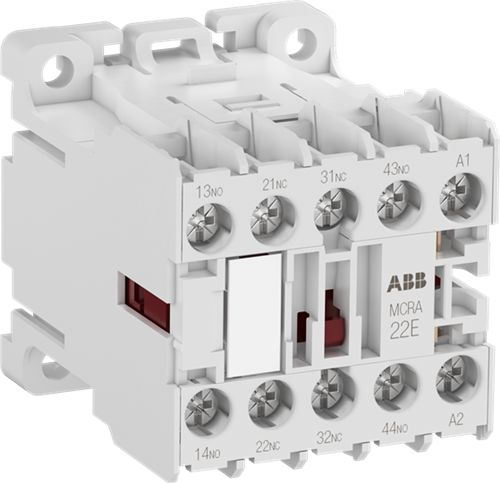

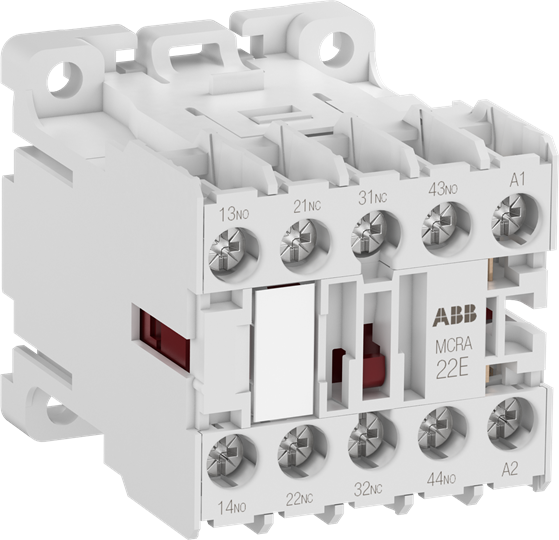

ABB MCRA022ATN Mini Contactor Relay 220-240V 2NC+2NO 50/60Hz

Product Code: MCRA022ATN

  • Compact mini contactor relay for AC operations
  • 2NC+2NO contact configuration for versatile use
  • Easy DIN rail mounting with screw terminals
  • Rated voltage of 220-240 V, current of 6 A
  • IP20 protection, suitable for indoor use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactor Relays
Brand
ABB

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
No. of Poles (NO/NC)
2NO/2NC
Rated Control Supply Voltage (Us)
50 Hz 220 ... 240 V AC 60 Hz 240 ... 277 V AC
Rated Operational Current AC-15 (Ie)
6 A
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
56 mm
Height
48 mm
Weight
0.17 kg
Width
45 mm

Environmental

Ambient Temperature
-40 ... +70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-5-1

Documents

IPD Product Catalogue V17
