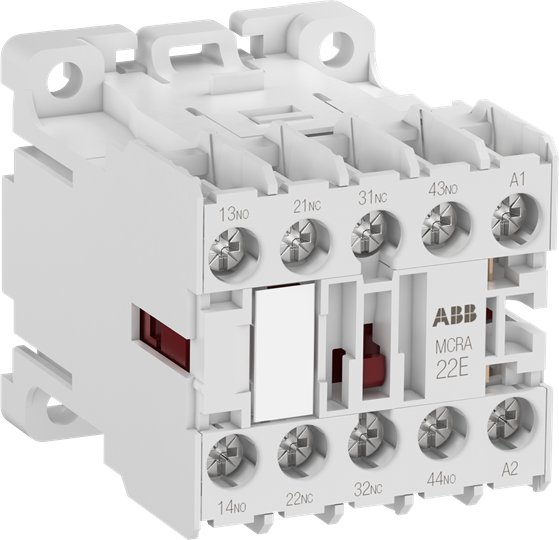

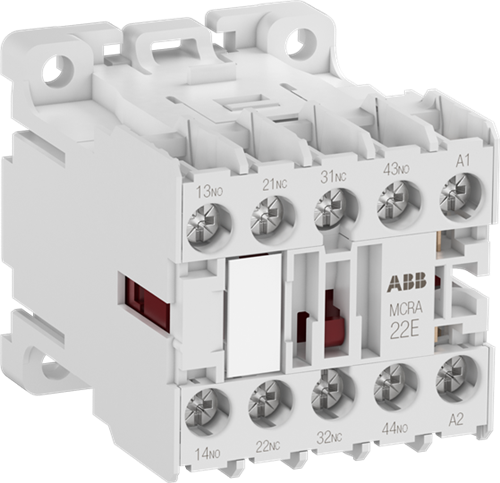

ABB MCRA022AT1 Mini Contactor Relay 24VAC 2NO 50/60Hz

Product Code: MCRA022AT1

  • Mini contactor relay with 24 VAC rated voltage
  • Handles up to 6 A current, 50/60 Hz frequency
  • Compact size: 45x48x56 mm for easy installation
  • IP20 protection and screw terminals for secure connections
  • Suitable for DIN rail or wall mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactor Relay
Brand
ABB

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Control Supply Voltage (Us)
24 V AC
Rated Operational Current AC-15 (Ie)
6:00 AM
Rated Frequency
50/60 Hz
No. of Poles
2NO/2NC

Dimensions & Physical Data

Depth
56 mm
Height
48 mm
Weight
0.17 kg
Width
45 mm

Environmental

Ambient Temperature
-40 ... +70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-5-1
