Specifications

Product Type Automatic Circuit Breaker	Brand ABB	Series SACE Tmax XT
Application Power Distribution

AC Power Loss Per Pole at In 24 W	Max. Rated Operation AC Voltage (Ue) 690 V AC	Rated Insulation Voltage (Ui) 1000 V
Type of Protection Trip Unit EL	Rated Current (In) 1000 A	Rated Frequency 50 to 60 Hz
Trip Curve Ekip Dip LSI	Terminal Type Front	Electrical Life 3000 cycles
Mechanical Life 20000 cycles	No. of Poles 3P

Mechanical Connection

G1 / 2" EN 837

Depth 178 mm	Height 268 mm	Weight 11000 g
Width 210 mm

Pollution Degree

Operating Temperature

-40 to 125 °C

Standards and Approvals

IEC 60947-2

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz 70 kA	Rated Service Short Circuit Breaking Capacity (Ics) 690V AC 42 kA	Rated Ultimate Short Circuit Breaking Capacity (Icu) 690V AC 42 kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC 42 kA	Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC 42 kA

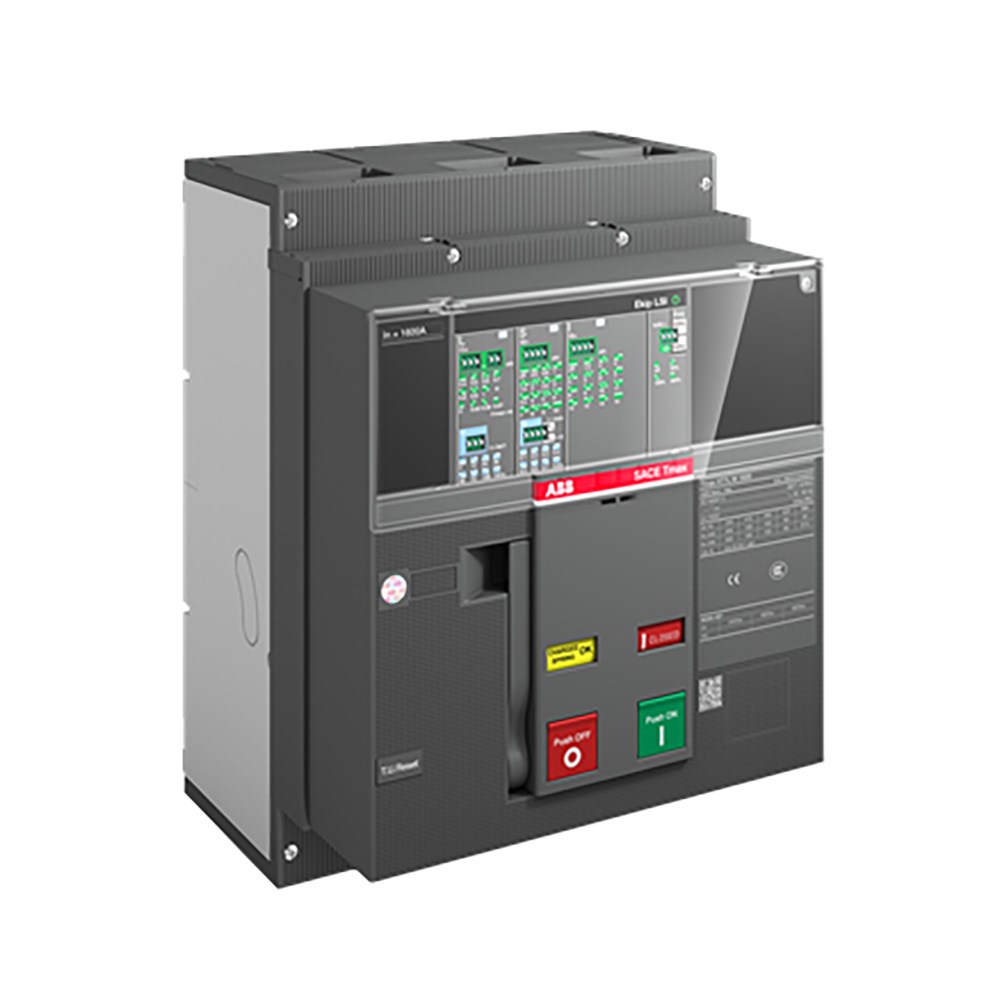

ABB MCCB XT7MH 800A 3P 70kA EKIP LSI TRIP UNIT XT7MH3LSI800 1SDA101434R1
