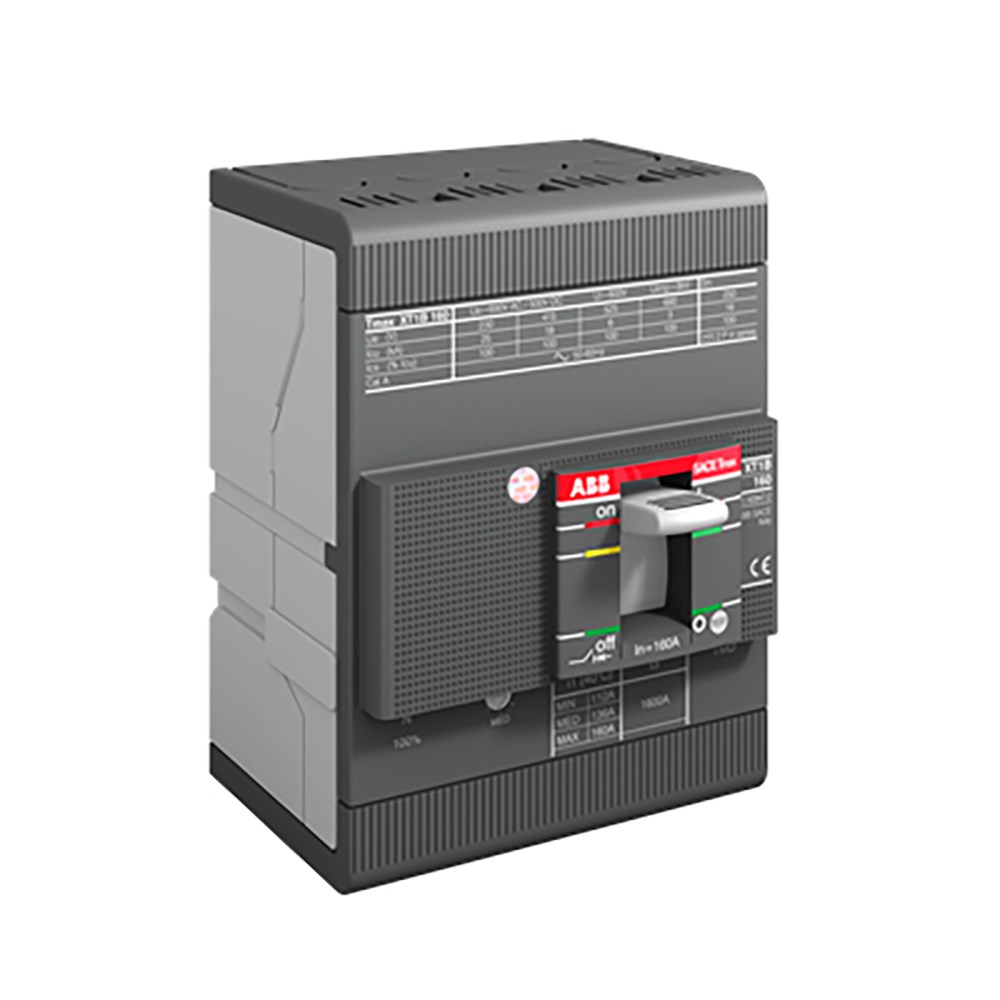

ABB MCCB XT1N 25A 4P 36kA TMD TRIP UNIT XT1N4TMD025 1SDA080844R1

Product Code: 1SDA080844R1

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

Long Time Overload Protection Adjustment Range
17.5 to 25 A
Rated Insulation Voltage (Ui)
800 V
Type of Protection Trip Unit
TM
Power Loss
6 W
Rated Current (In)
160 A
Trip Curve
TMD
Terminal Type
Front
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
4P

Mechanical

Mechanical Connection
G1 / 2" EN 837

Dimensions & Physical Data

Depth
70 mm
Height
130 mm
Weight
1300 g
Width
101.6 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36 kA
Rated Service Short Circuit Breaking Capacity (Ics) 690V AC
5 kA
Rated Ultimate Short Circuit Breaking Capacity (Icu) 690V AC
6 kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
5 kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
6 kA
