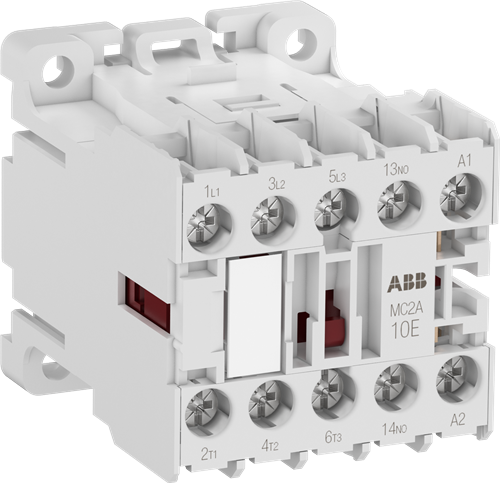

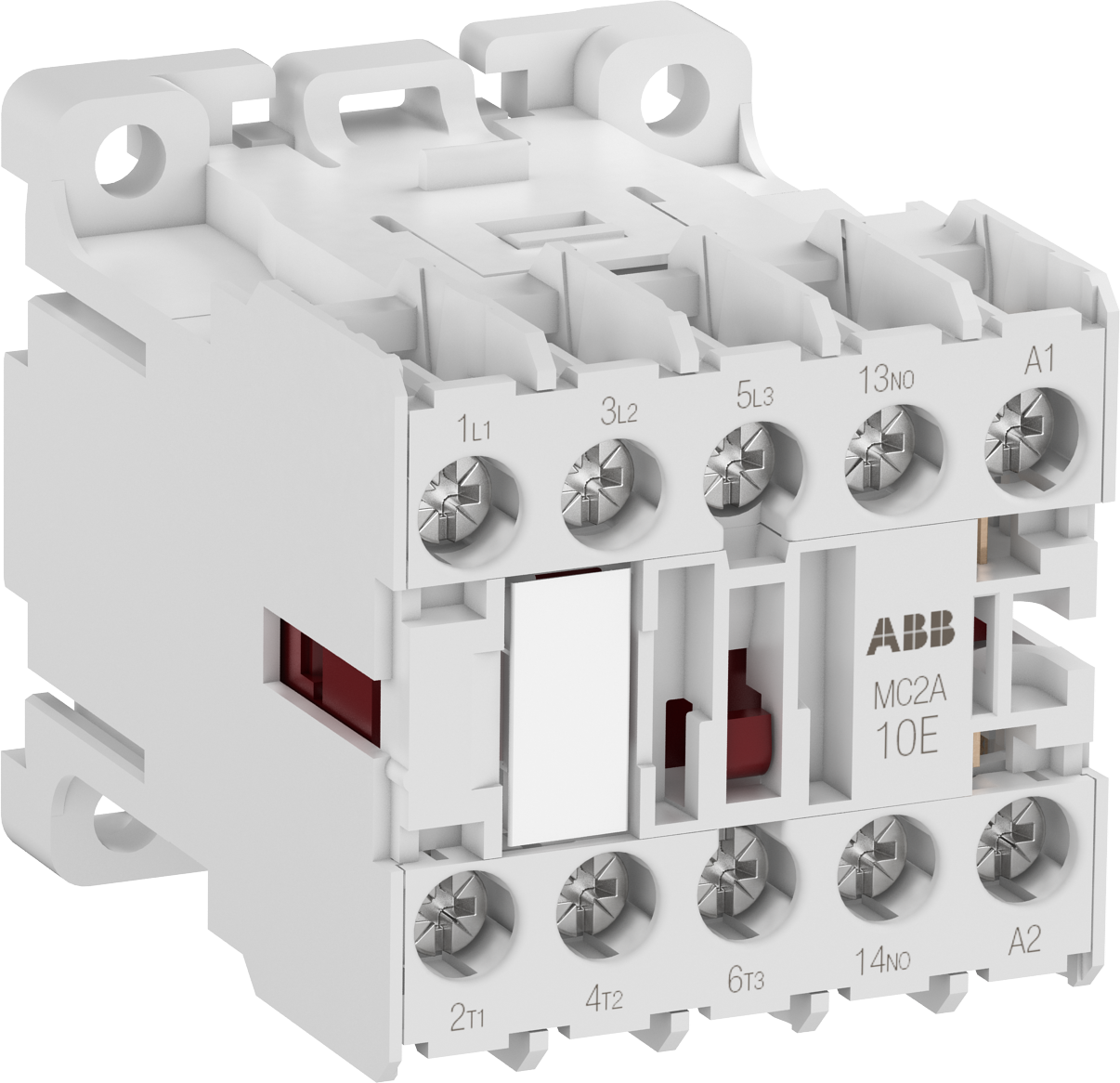

ABB MC2A310ATN Mini Contactor 3P 20A 5.5kW 220-240VAC Screw DIN Rail Wall Mount

Product Code: MC2A310ATN

  • Compact size: 45mm width, 48mm height, 56mm depth
  • Handles up to 20A current with a power rating of 5.5kW
  • Suitable for DIN rail or wall mounting
  • Operates in temperatures from -40 to 55°C
  • IP20 protection with screw terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
50 Hz 220 ... 240V AC / 60 Hz 240 ... 277V AC
Rated Operational Current AC-1 <= 440V (Ie)
20A
Rated Operational Current AC-1 <= 690V (Ie)
20A
Rated Operational Current AC-3 400V (Ie)
0
Rated Operational Current AC-3 690V (Ie)
0.208333333
Rated Operational Power AC-3 400V (Pe)
5.5kW
Rated Operational Power AC-3 690V (Pe)
4kW
Rated Frequency
50/60Hz
No. of Poles
3P

Dimensions & Physical Data

Depth
56mm
Height
48mm
Weight
0.17kg
Width
45mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1UL 60947-5-1
