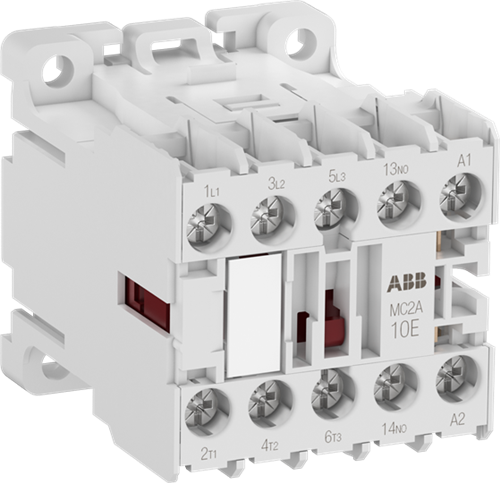

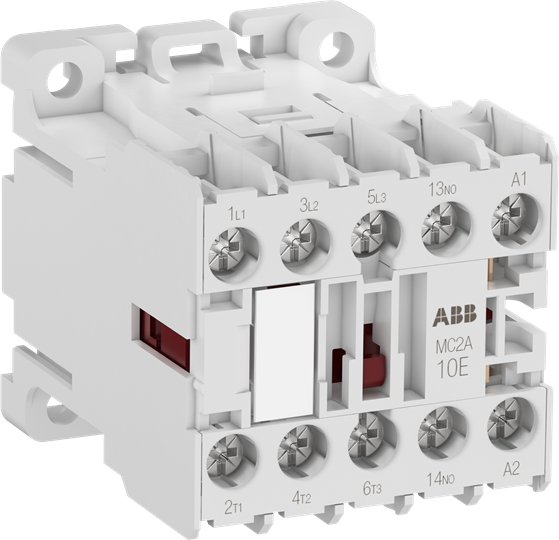

ABB MC2A310AT1 Mini Contactor 20A 5.5kW 24VAC Screw DIN Rail Wall Mount

Product Code: MC2A310AT1

  • Compact design: 45mm width, 48mm height, 56mm depth
  • Handles up to 20A current at 24VAC
  • Dual mounting options: DIN rail or wall
  • Operates in extreme temps: -40 to 55°C
  • IP20 protection with screw terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
24V AC
Rated Operational Current AC-1 <= 440V (Ie)
20A
Rated Operational Current AC-1 <= 690V (Ie)
20A
Rated Operational Current AC-3 400V (Ie)
0
Rated Operational Current AC-3 690V (Ie)
0.208333333
Rated Operational Power AC-3 400V (Pe)
5.5kW
Rated Operational Power AC-3 690V (Pe)
4kW
Rated Frequency
50/60Hz
No. of Poles
3P

Dimensions & Physical Data

Depth
56mm
Height
48mm
Weight
0.17kg
Width
45mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1UL 60947-5-1
