Specifications

Product Type

Mini Contactor

Brand

ABB

No. of Poles (Total) 3	Rated Control Supply Voltage (Us) 24V AC 50/60 Hz	Rated Operational Current AC-1 <= 440V (Ie) 55 °C 20A
Rated Operational Current AC-1 <= 690V (Ie) 55 °C 20A	Rated Operational Current AC-3 400V (Ie) 55 °C 12A	Rated Operational Current AC-3 690V (Ie) 55°C 5A
Rated Operational Power AC-3 400V (Pe) 5.5kW	Rated Operational Power AC-3 690V (Pe) 4kW	Rated Frequency 50/60Hz
No. of Auxiliary Contacts 1 NC

Depth 56mm	Height 48mm	Weight 0.17kg
Width 45mm

Ambient Temperature

-40°C to 55°C

Standards and Approvals

IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1; UL 60947-5-1

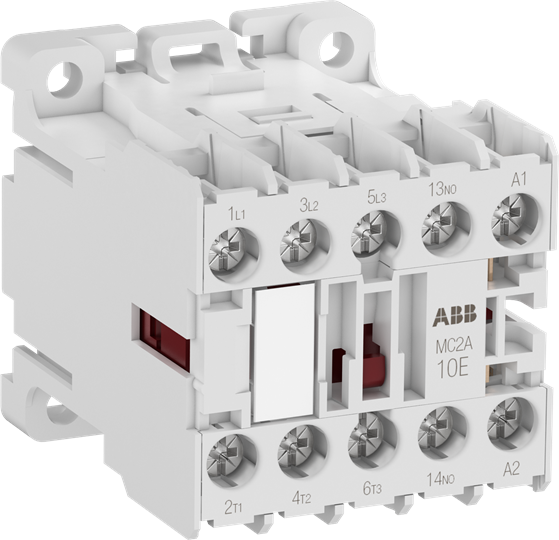

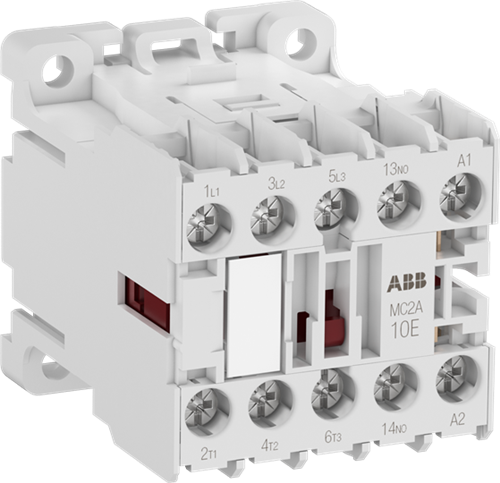

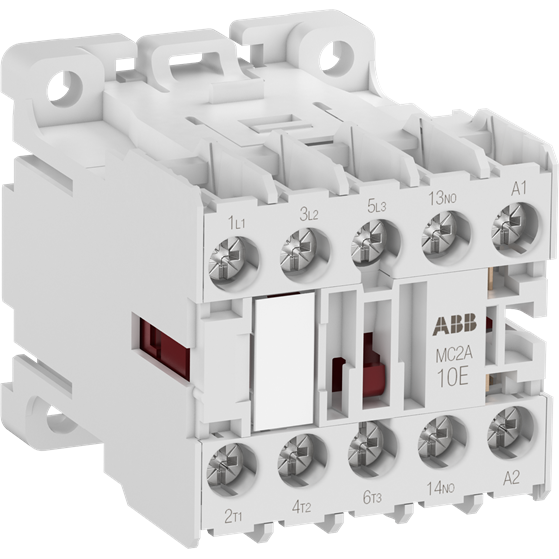

ABB MC2A301AT1 Mini Contactor 20A 5.5kW 24VAC Screw DIN Rail Wall Mount
