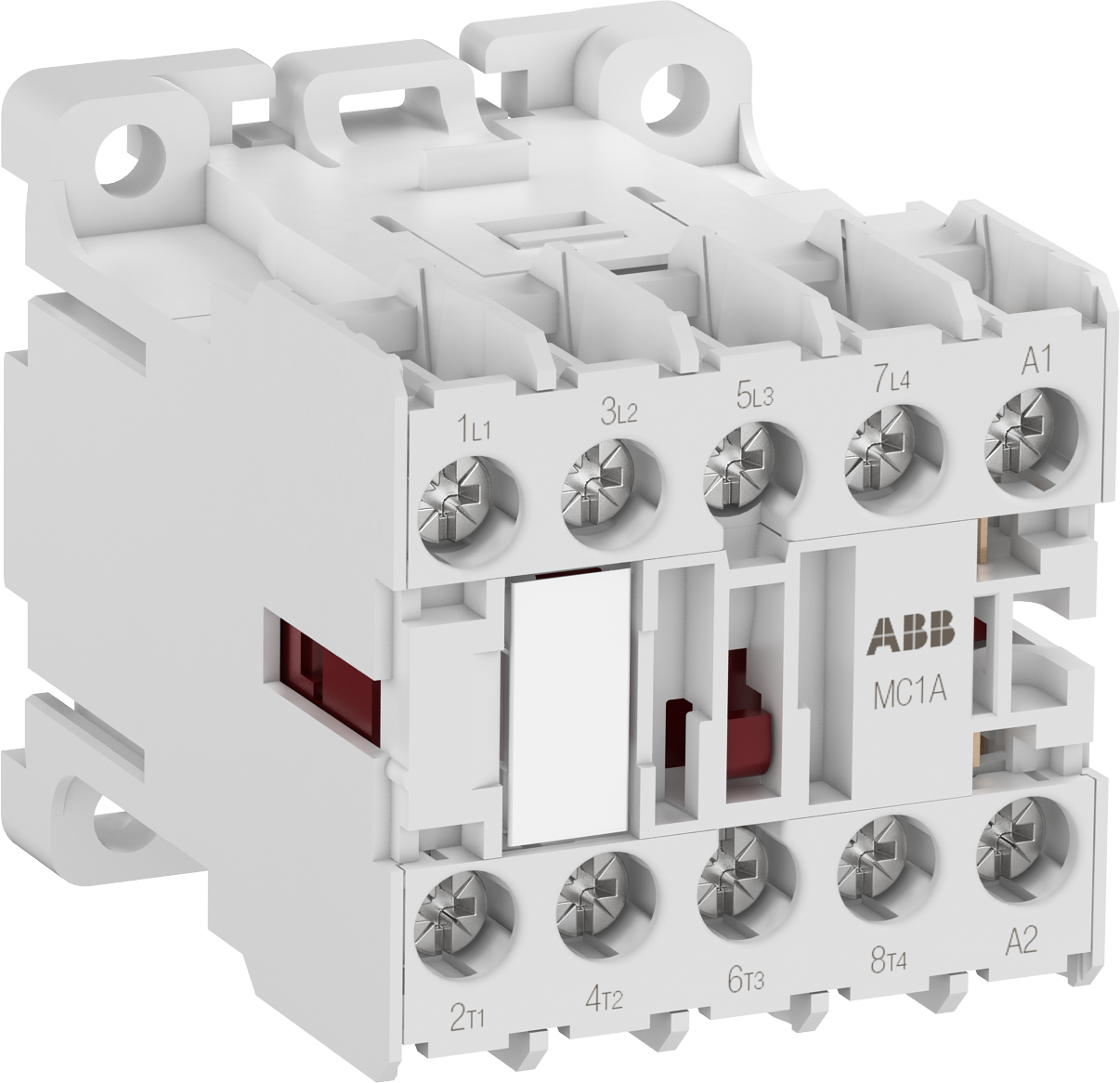

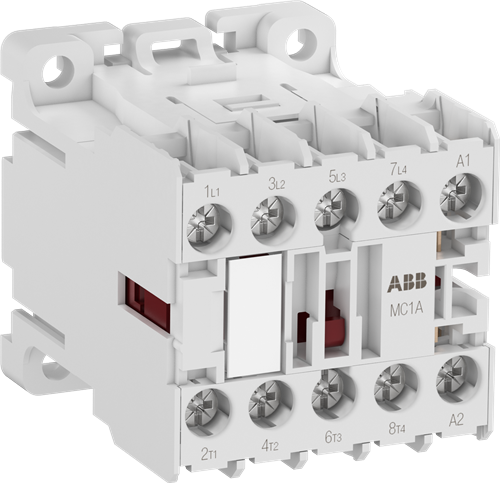

ABB MC1A400ATN Mini Contactor 4P 20A 4kW 220-240VAC Screw DIN Rail Wall Mount

Product Code: MC1A400ATN

  • Compact design, 45 mm width
  • Operates at 220-240 VAC, 20 A
  • Dual mounting: DIN Rail & Wall
  • Withstands impulses up to 6 kV
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
50 Hz 220 ... 240V AC / 60 Hz 240 ... 277V AC
Rated Operational Current AC-1 <= 440V (Ie)
20A
Rated Operational Current AC-1 <= 690V (Ie)
20A
Rated Operational Current AC-3 400V (Ie)
0.375
Rated Operational Current AC-3 690V (Ie)
0.208333333
Rated Operational Power AC-3 400V (Pe)
4kW
Rated Operational Power AC-3 690V (Pe)
4kW
Rated Frequency
50/60Hz
No. of Poles
4P

Dimensions & Physical Data

Depth
56mm
Height
48mm
Weight
0.17kg
Width
45mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1IEC/EN 60947-4-1UL 60947-1UL 60947-4-1
