Specifications

Product Type

Mini Contactors

Brand

ABB

Rated Control Supply Voltage (Us) 24 V AC	Rated Operational Current AC-1 <= 440V (Ie) 20 A	Rated Operational Current AC-1 <= 690V (Ie) 20 A
Rated Operational Current AC-3 400V (Ie) 0.375	Rated Operational Current AC-3 690V (Ie) 0.20833333333333334	Rated Operational Power AC-3 400V (Pe) 4 kW
Rated Operational Power AC-3 690V (Pe) 4 kW	Rated Frequency 50/60 Hz	No. of Poles 3P

Depth 56 mm	Height 48 mm	Weight 0.17 kg
Width 45 mm

Ambient Temperature

-40 ... +70 °C

Standards and Approvals

IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1UL 60947-5-1

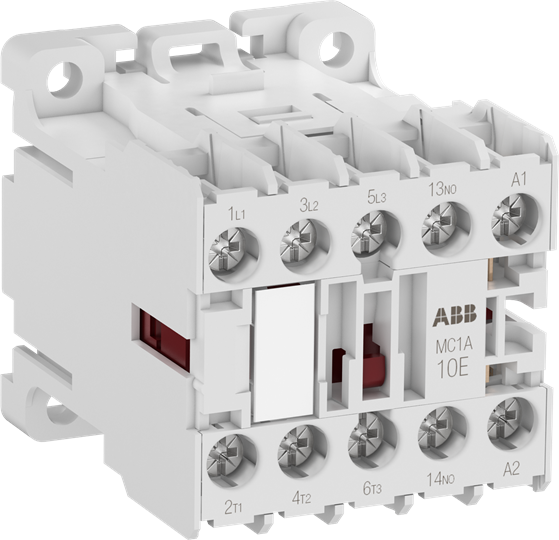

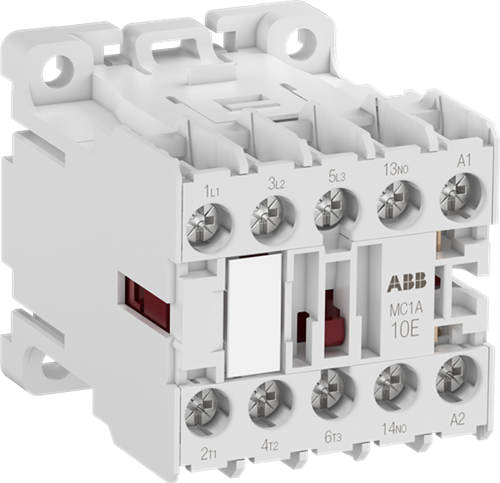

ABB MC1A310AT1 Mini Contactor 3P 5.5A 6kW 220-240VAC Screw DIN Rail Wall Mount
