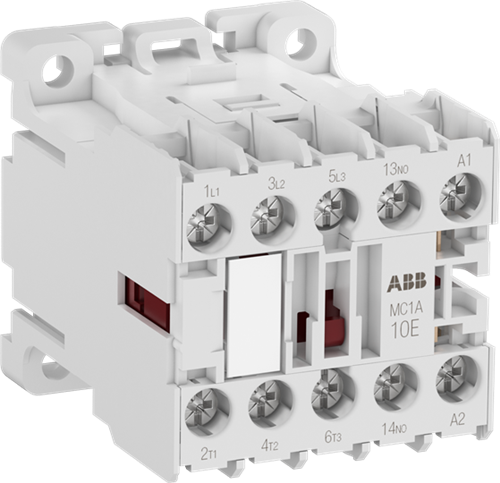

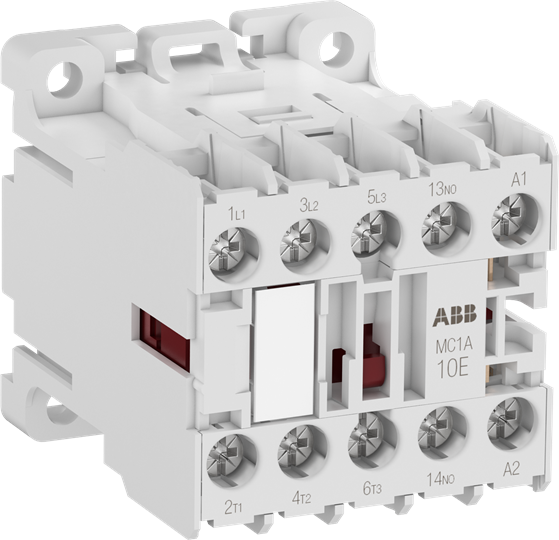

ABB MC1A301AT1 Mini Contactor 3P 5.5A 6kW 24VAC Screw DIN Rail Wall Mount

Product Code: MC1A301AT1

  • Compact mini contactor with 3NO contacts
  • Rated for 24 VAC, 5.5 A, and 6 kW power
  • Suitable for DIN rail or wall mounting
  • Operates in -40 to 55°C temperature range
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactor
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
24V AC
Rated Operational Current AC-1 <= 440V (Ie)
20A
Rated Operational Current AC-1 <= 690V (Ie)
20A
Rated Operational Current AC-3 400V (Ie)
0.375
Rated Operational Current AC-3 690V (Ie)
0.208333333
Rated Operational Power AC-3 400V (Pe)
4kW
Rated Operational Power AC-3 690V (Pe)
4kW
Rated Frequency
50/60Hz
No. of Poles
3P

Dimensions & Physical Data

Depth
56mm
Height
48mm
Weight
0.17kg
Width
45mm

Environmental

Ambient Temperature
-40°C to 70°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1UL 60947-5-1

Documents

IPD Product Catalogue V17
