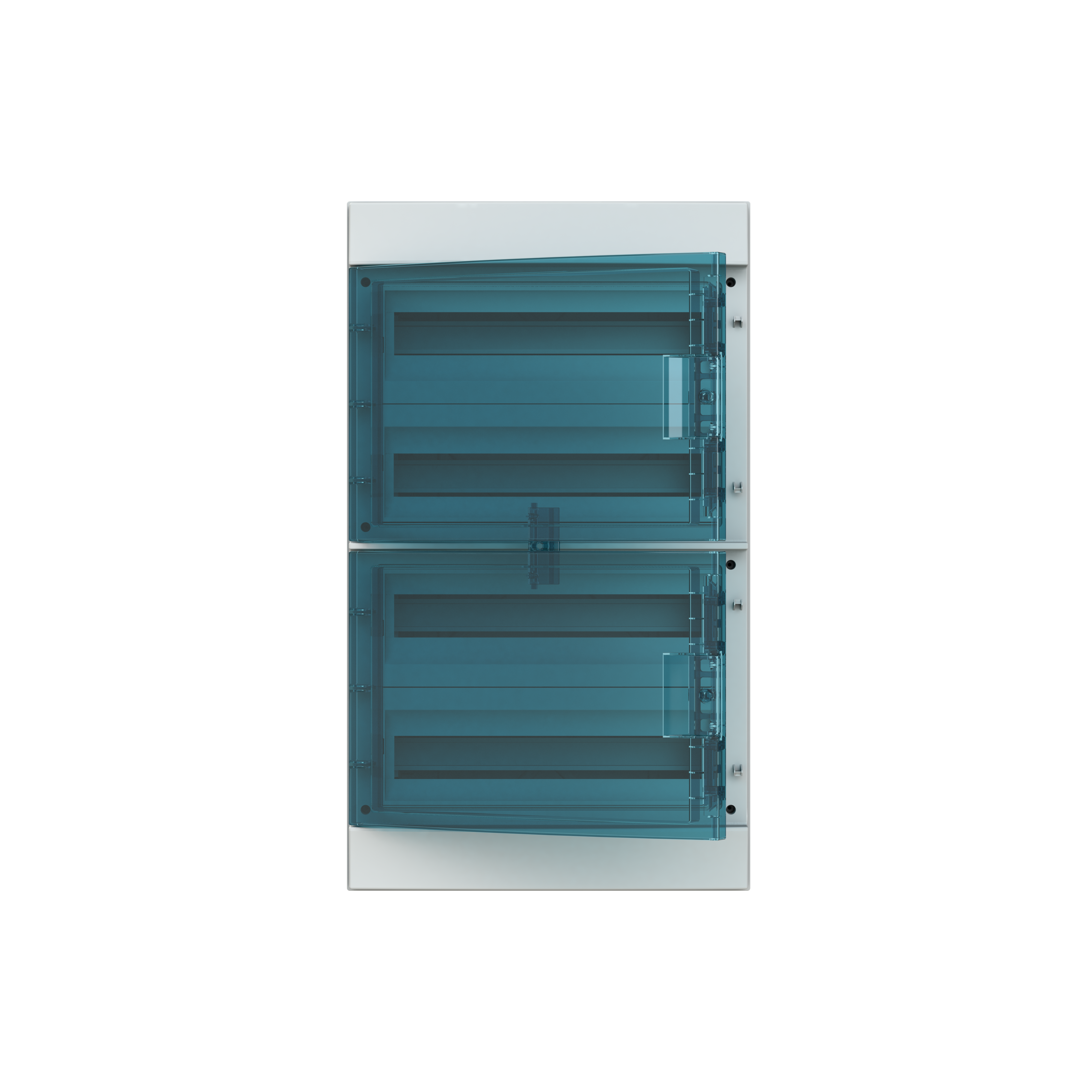

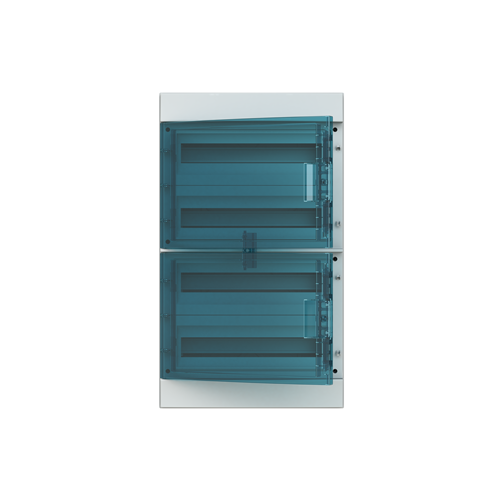

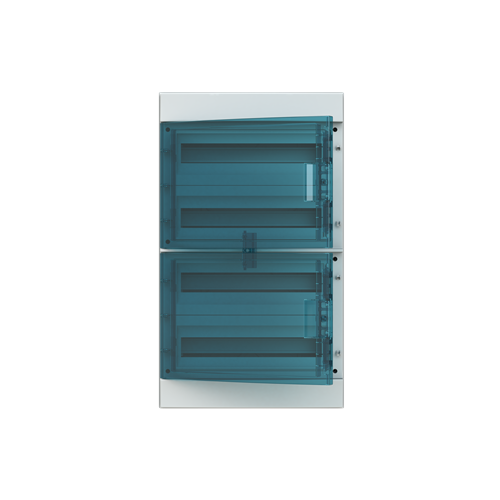

ABB M65W72T Surface Mount Load Centre 72-Module 4-Row Light Grey Wall Mount IP65 Transparent (Petrol Blue) Door

Product Code: M65W72T

  • Durable polycarbonate housing
  • IP65-rated for dust and water resistance
  • Transparent petrol blue door for easy visibility
  • Wall-mounted design saves space
  • Operates in -10 to 60°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Consumer Unit
Brand
ABB

Electrical

No. of Poles (18mm pitch)
72P
Rated Insulation Voltage (Ui)
1000V AC
Rated Current (In)
125A
Rated Voltage (Ur)
400V
Earth Terminal Block
No Terminals
Neutral Terminal Block
No Terminals

Mechanical

Door Colour
Transparent
Housing Colour
RAL 7035 - Light Grey
Housing Material
Plastic
Mounting
Surface mounting
No. of Rows
4
With Lock
No

Dimensions & Physical Data

Depth
155mm
Height
735mm
Weight
5.43kg
Width
430mm

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
IEC 60670-24; IEC 61439-3

Documents

IPD Product Catalogue V17
