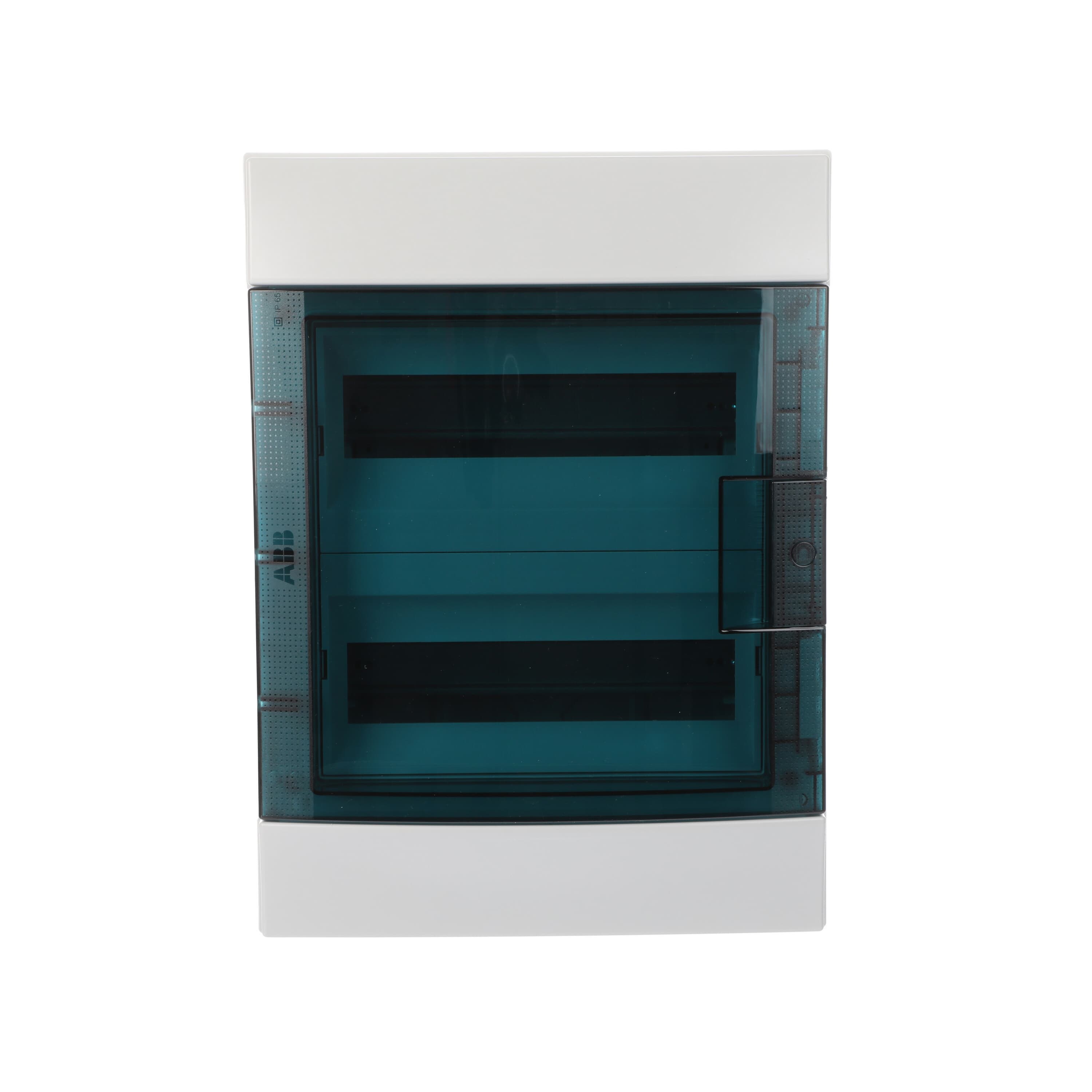

ABB M65W24T Surface Mount Load Centre 24-Module 2-Row Light Grey Wall Mount IP65 Transparent (Petrol Blue) Door

Product Code: M65W24T

  • Wall-mounted polycarbonate load centre
  • IP65 rated for dust and water protection
  • Transparent petrol blue door for easy viewing
  • Compact size: 320mm W x 435mm H x 155mm D
  • Operates in temperatures from -10 to 60°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Consumer unit
Brand
ABB

Electrical

No. of Poles (18mm pitch)
24P
Rated Current (In)
125 A
Rated Insulation Voltage (Ui)
1000 V AC
Rated Voltage
400 V
Earth Terminal Block
No Terminals
Neutral Terminal Block
No Terminals

Mechanical

Door Colour
Transparent
Housing Colour
RAL 7035 - Light Grey
Housing Material
Plastic
Mounting Type
Surface mounting
No. of Rows
2
With Lock
No

Dimensions & Physical Data

Depth
155 mm
Height
435 mm
Weight
2.4 kg
Width
320 mm

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
IEC 60670-24; IEC 61439-3
