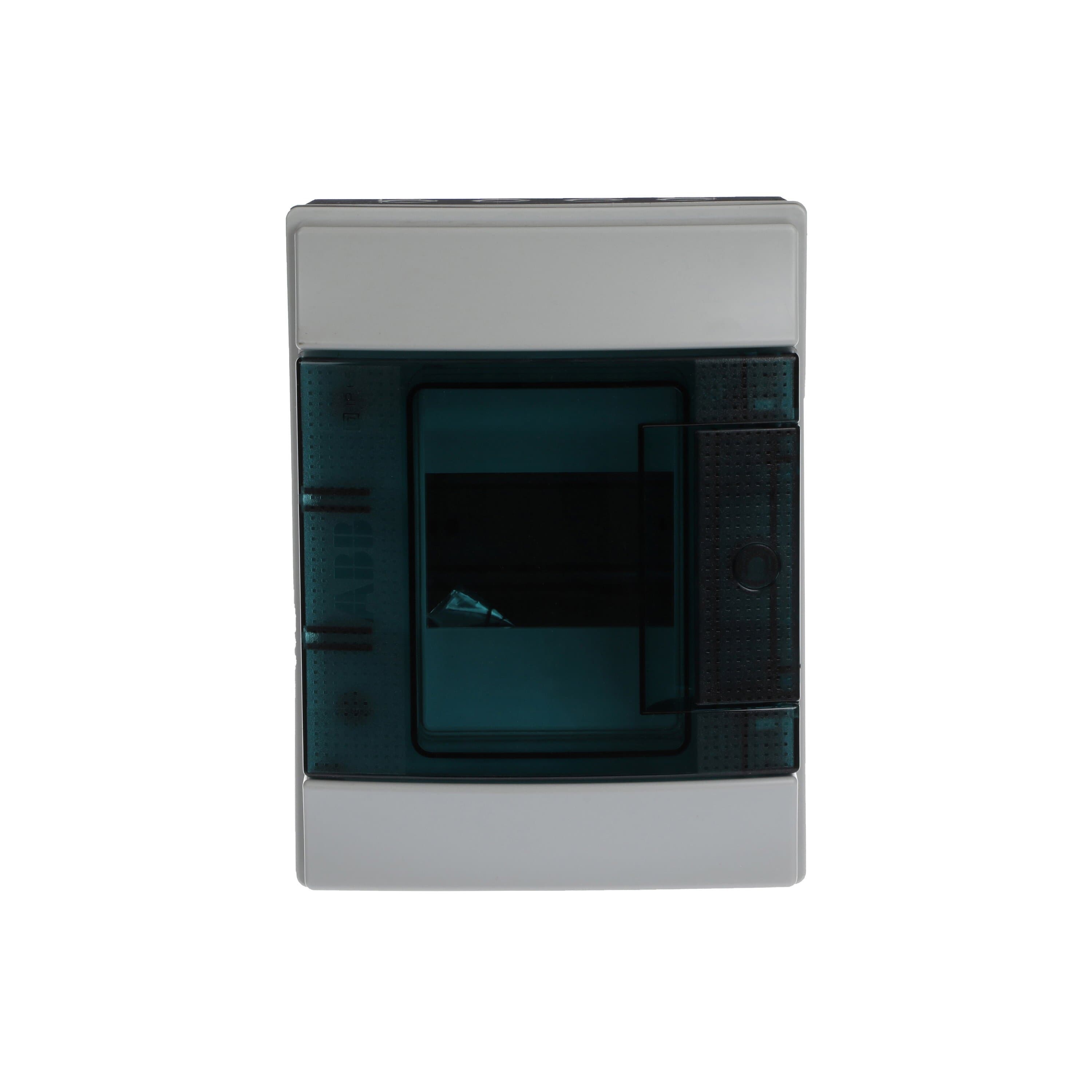

ABB M65W04T Surface Mount Load Centre 4-Module 1-Row Light Grey Wall Mount IP65 Transparent (Petrol Blue) Door

Product Code: M65W04T

  • Wall-mounted polycarbonate load centre
  • IP65 protection for dust and water resistance
  • Transparent petrol blue door for easy viewing
  • Compact size: 152x202x117 mm
  • Suitable for DIN rail configuration
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Consumer unit
Brand
ABB

Electrical

No. of Poles (18mm pitch)
4P
Rated Current (In)
63 A
Rated Insulation Voltage (Ui)
1000 V AC
Rated Voltage
400 V
Earth Terminal Block
No Terminals
Neutral Terminal Block
No Terminals

Mechanical

Door Colour
Transparent
Housing Colour
RAL 7035 - Light Grey
Housing Material
Plastic
Mounting Type
Surface mounting
No. of Rows
1
With Lock
No

Dimensions & Physical Data

Depth
117 mm
Height
202 mm
Weight
0.54 kg
Width
152 mm

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
IEC 60670-24; IEC 61439-3

Documents

IPD Product Catalogue V17
