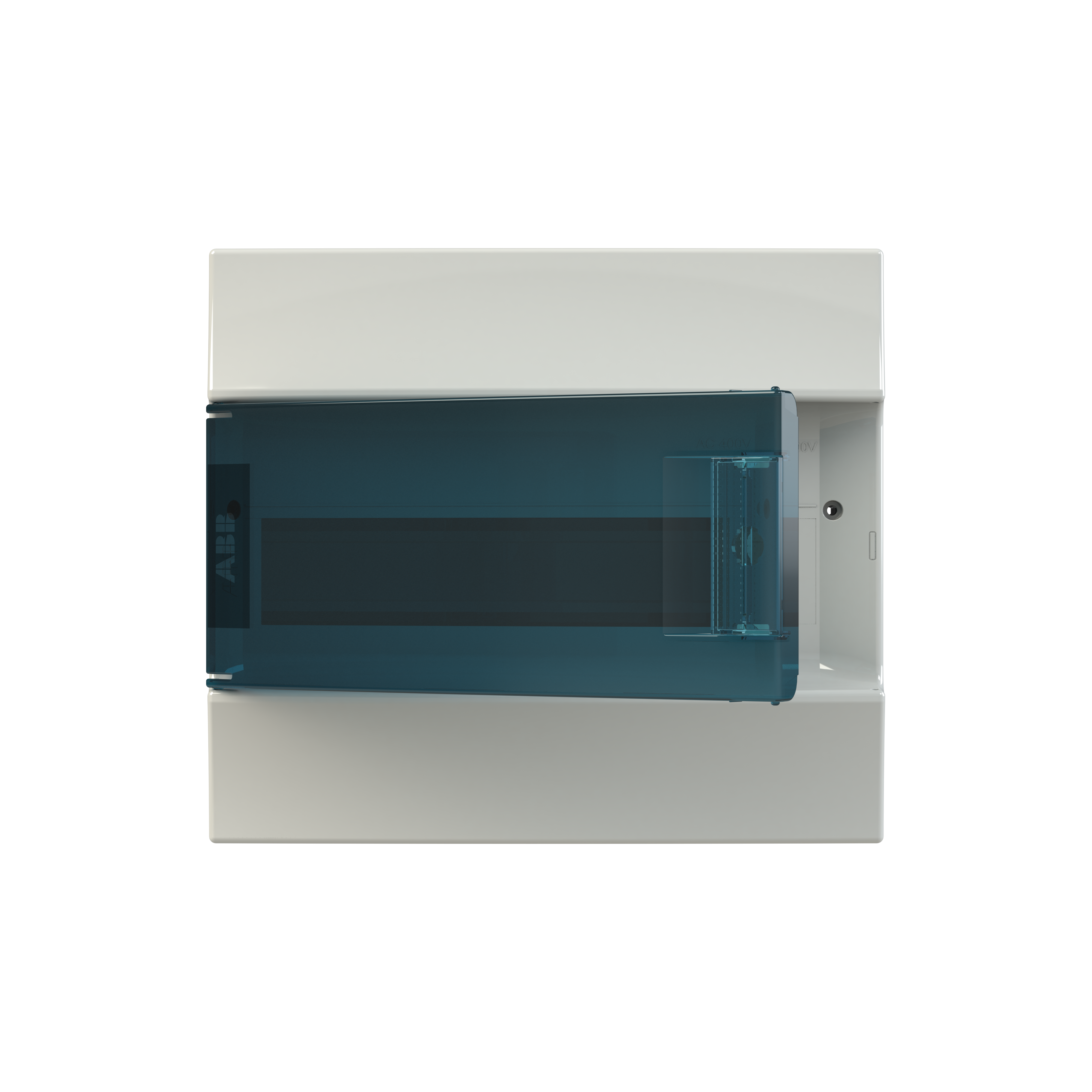

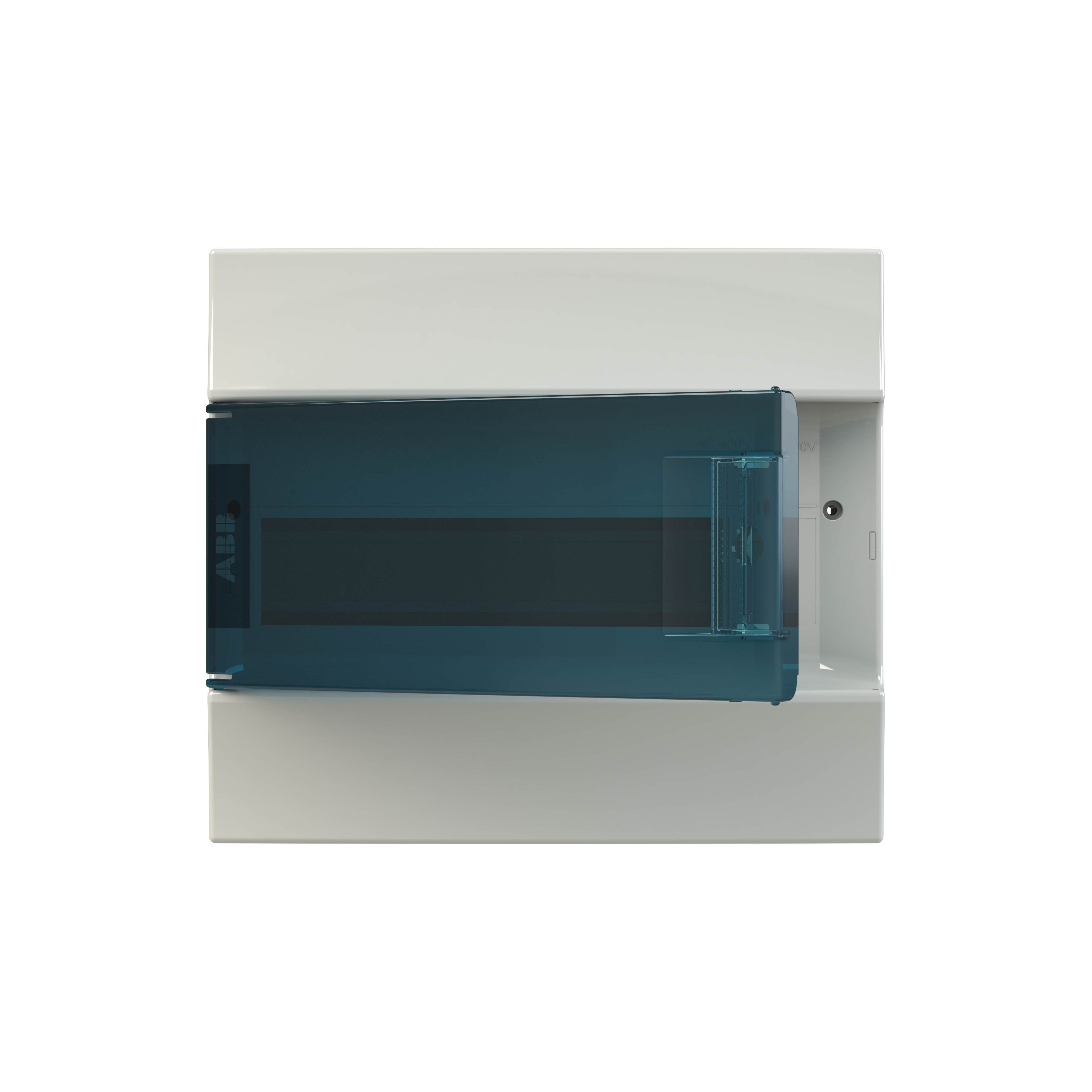

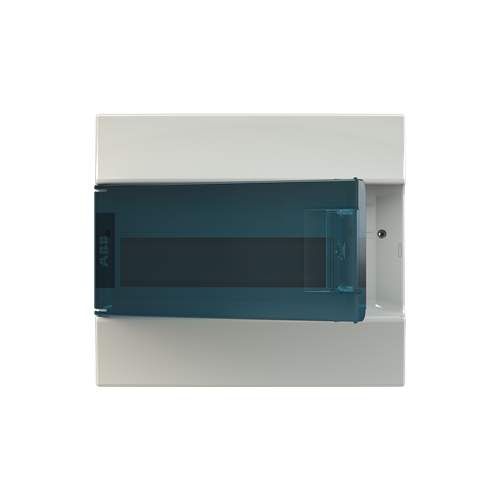

ABB M41W12T Surface Mount Load Centre 12-Module 1-Row White Wall Mount IP41 Transparent (Petrol Blue) Door

Product Code: M41W12T

  • Wall-mounted polycarbonate load centre
  • IP41 protection for indoor use
  • Transparent petrol blue door
  • Compact size: 297x119x262 mm
  • Suitable for DIN rail configuration
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Consumer unit
Brand
ABB

Electrical

No. of Poles (18mm pitch)
12P
Rated Current (In)
63 A
Earth Terminal Block
No Terminals
Neutral Terminal Block
No Terminals

Mechanical

Door Colour
Transparent
Housing Colour
RAL 9016 - Traffic White
Housing Material
Plastic
Mounting Type
Surface mounting
No. of Rows
1
With Lock
No

Dimensions & Physical Data

Depth
119 mm
Height
262 mm
Weight
0.969 kg
Width
297 mm

Environmental

IP Rating
IP41

Safety, Standards & Compliance

Standards and Approvals
IEC 60670
